TE Connectivity AMP Connectors 1-967616-1

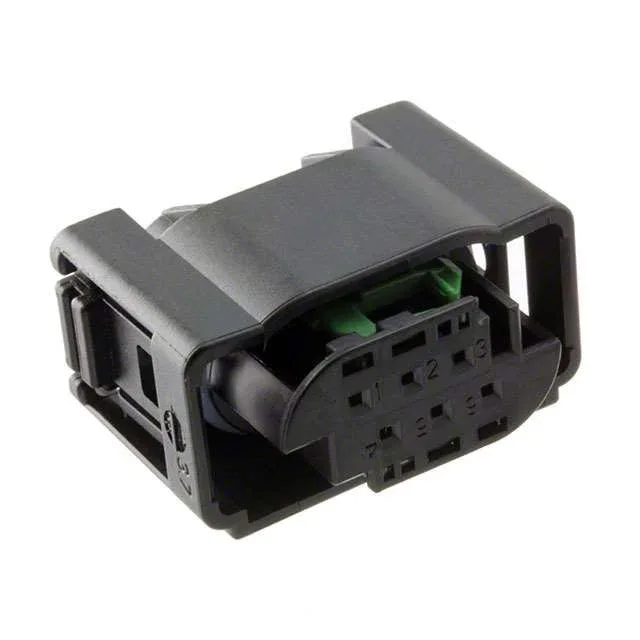

TE Micro Quadlok 1-967616-1, 6 Pos Receptacle, 4.00mm

MPN 1-967616-1
Active

TE Connectivity Micro Quadlok receptacle housing, 1-967616-1, 6 positions, 2 rows, 4.00mm pitch, 3.50mm row spacing, sealed, free-hanging, crimp termination, black PBT, -40°C to 120°C.

$2.0800 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesMicro Quadlok
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1-967616-1 specifications
ParameterValue
SeriesMicro Quadlok
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Operating temperature-40°C ~ 120°C
ColorBlack
Insulation materialPolybutylene Terephthalate (PBT), Glass Filled
NoteContacts Not Included
Pitch0.157\" (4.00mm)
PackageBulk
FeaturesSealed
Row spacing0.138\" (3.50mm)
Rows2
Contact terminationCrimp
Positions6

Product details

Sealed 6-Position Housing for Harsh-Duty Harnesses

The black glass-filled PBT body handles -40°C to 120°C, which puts it in the same thermal class as underhood automotive and outdoor industrial cabinet gear.

The Sealing Feature — What It Actually Means

The 'Sealed' feature on this housing means the interface between the receptacle and its mating plug is designed to keep water and dust out when the pair is mated. This is not an IP-rated standalone housing — the seal engages at the mating face, so the connector must be mated with the correct plug and locked to achieve the environmental protection. In practice, this housing is chosen for harness runs that pass through splash zones, engine bays, or washdown areas where a standard unsealed connector would corrode or short.

The housing ships empty. The crimp terminals (female sockets) must be ordered separately and are not included in the 1-967616-1 package. This is a common BOM trap — the housing arrives, but the build stops because the contacts are missing.

MPN
1-967616-1
