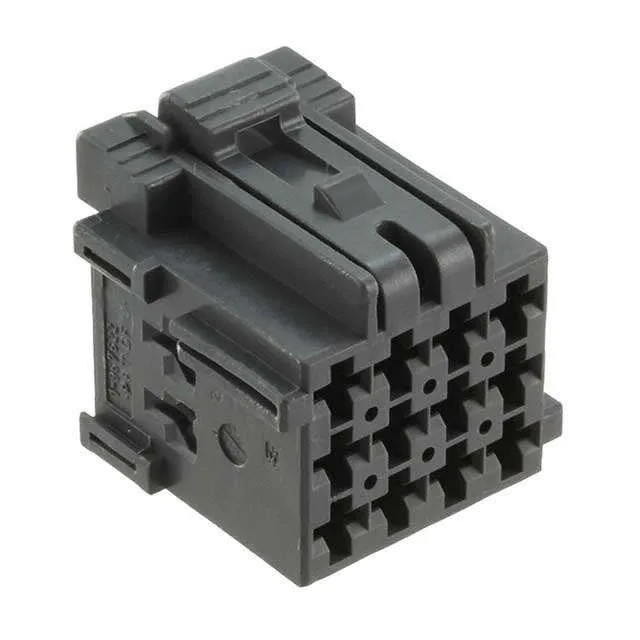

12-Position, 3-Row Receptacle Housing for Inline Harness Builds
The 5.00 mm pitch and 5.51 mm row spacing provide enough room for 20–16 AWG power and signal circuits without crowding the cavity walls. The gray, glass-filled PBT housing carries a -30°C to 100°C operating range, suited for underhood or industrial cabinet environments where temperature cycling is a given.
Sourcing and Lifecycle — Still in Production
That means it is still in regular production with no announced end-of-life.
The housing has a primary latch that locks onto the header shroud with an audible click. No panel cutout is needed — the assembly is inline, so it routes directly in the harness bundle.
