Housing for a 15-Circuit Power Harness
The 5.00 mm pitch and 0.217" (5.51 mm) row spacing give each circuit enough creepage for 12V/24V vehicle electrical systems, with room to route 1.5 mm² to 2.5 mm² power cable.
What the 3-Row Layout Means on the Bench

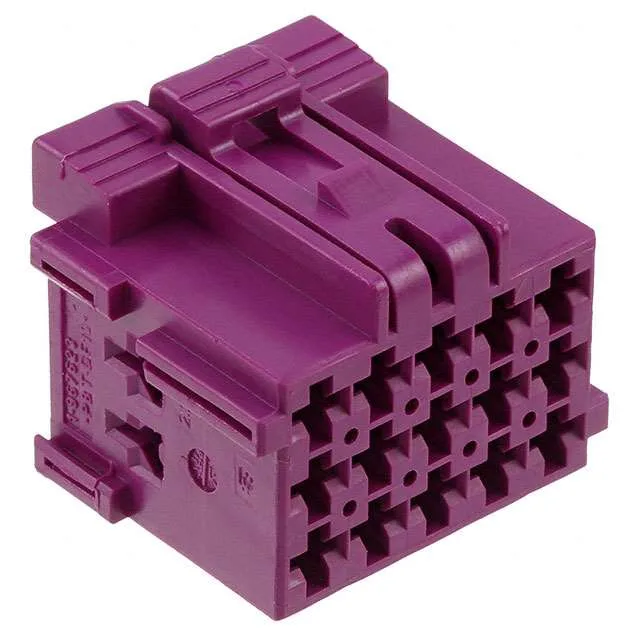

Three rows at 5.00 mm pitch means this housing carries 15 circuits in a footprint that is wider than a 2-row 15-position housing would be. The row-to-row spacing of 0.217" (5.51 mm) is tighter than the pitch, so the terminal cavities stagger slightly between rows — the crimp tooling and wire dress need to account for that offset when you bundle the leads into a harness. The purple PBT, glass-filled housing holds up to -30°C to 100°C operating range, which covers engine-bay and underhood locations as long as the connector is not directly on a hot manifold.
