15-Position, 3-Row Inline Receptacle for Junior Power Timer Harnesses

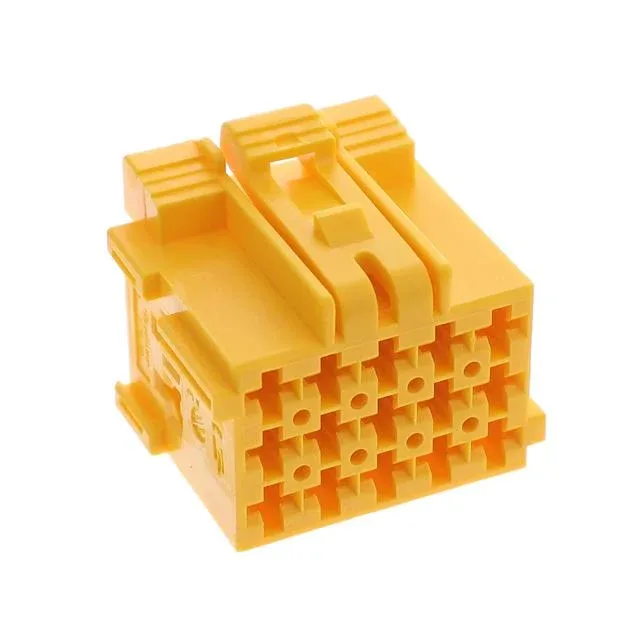

The TE Connectivity 1-967623-3 is a 15-position receptacle from the Junior Power Timer series, arranged in 3 rows on a 0.197" (5.00 mm) pitch with a 0.217" (5.50 mm) row spacing.
Pitch and Row Layout — Fit for a 15-Circuit Harness
The 5.00 mm pitch and 5.50 mm row spacing are standard for the Junior Power Timer series, providing enough cavity-to-cavity creepage for 12V/24V automotive circuits. The 3-row, 15-position layout means the receptacle is wider than a 2-row 15-position housing — the overall width across the rows is about 11 mm (two row spaces plus the wall thickness). This matters when routing the harness through a tight grommet or conduit: the connector body is the widest point in the cable assembly.
Latch Lock and Housing Material
The glass-filled PBT housing holds up to the under-hood thermal cycle without warping. The yellow color is a visual identifier — in a multi-connector harness, it helps the line worker or field tech pick the right receptacle without reading a label.
Mating and Contact Termination
Contacts are not included — they must be ordered separately as crimp socket terminals designed for the Junior Power Timer series. The crimp termination allows the harness builder to attach the correct wire gauge and seal (if required) before inserting the contact into the cavity. The secondary lock (TPA) on the housing ensures the terminal is fully seated and retained against vibration.
