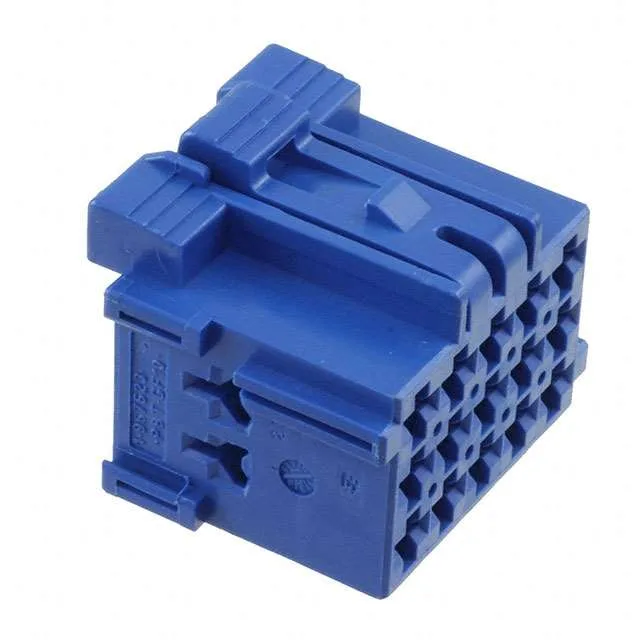

TE Connectivity Junior Power Timer receptacle housing, 1-967623-4, 15 positions, 5.00 mm pitch, 3 rows, free hanging, crimp termination, blue PBT housing, contacts not included.
| Parameter | Value |
|---|---|
| Series | Junior Power Timer |
| Type | Female Socket |
| Mounting | Free Hanging (In-Line) |
| Connector type | Receptacle |
| Operating temperature | -30°C ~ 100°C |
| Color | Blue |
| Insulation material | Polybutylene Terephthalate (PBT), Glass Filled |
| Note | Contacts Not Included |
| Pitch | 0.197\" (5.00mm) |
| Package | Bulk |
| Row spacing | 0.217\" (5.51mm) |
| Rows | 3 |
| Contact termination | Crimp |
| Positions | 15 |
A critical procurement detail: this housing ships with no contacts. You must order the matching Junior Power Timer crimp terminals separately to populate the 15 cavities.
The free-hanging design suits in-line harness splices where the connector is not board-mounted.
Submit an RFQ for a firm quote.
No. The 1-967623-4 housing ships without contacts. The listing explicitly states Contacts Not Included. You must order the matching Junior Power Timer crimp terminals separately to populate the 15 cavities.
The 1-967623-4 is part of the TE Connectivity Junior Power Timer series, a well-established automotive-grade connector family.
The pitch is 5.00 mm (0.197 inches), with a row spacing of 5.51 mm (0.217 inches).
