TE Connectivity AMP Connectors 100494-2 — Quick-Disconnect Terminals

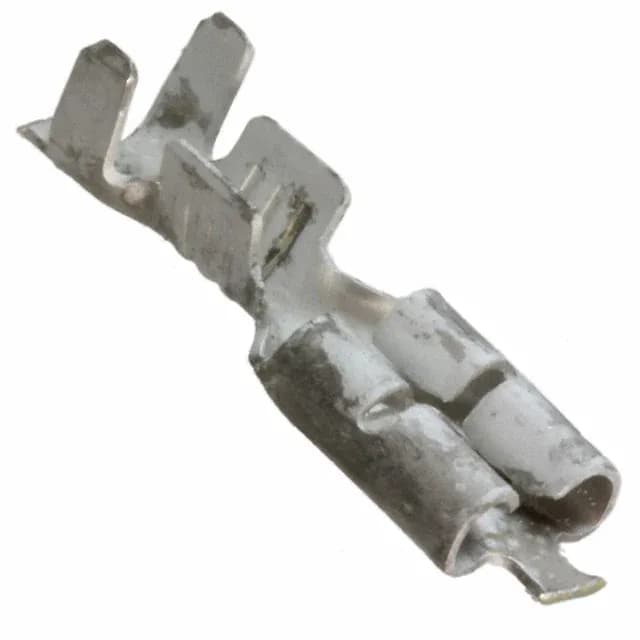

TE 100494-2 Faston Quick-Disconnect Terminal, 15-20 AWG

MPN100494-2
Active

TE Connectivity AMP Faston quick-disconnect terminal, order code 100494-2, female, 0.187" (4.75mm) tab width, 15-20 AWG, tin-plated brass, crimp termination, free hanging, non-insulated.

$0.2100Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesFaston
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

100494-2 specifications
ParameterValue
SeriesFaston
MountingFree Hanging (In-Line)
Terminal typeStandard
Wire gauge15-20 AWG
Tab width0.187\" (4.75mm)
Contact materialBrass
GenderFemale
PackageTape & Reel (TR) Cut Tape (CT)
InsulationNon-Insulated
Tab length0.248\" (6.30mm)
TerminationCrimp
Tab thickness0.032\" (0.81mm)
Contact finishTin
Length - overall0.591\" (15.00mm)
Insulation diameter0.091\" ~ 0.130\" (2.31mm ~ 3.30mm)

Product details

Faston female terminal for 0.187" tabs

The 100494-2 is the non-insulated female member of TE's Faston quick-disconnect terminal line, designed for 0.187" (4.75mm) male tabs and 15-20 AWG wire. Tin-plated brass construction, crimp termination, and a free-hanging in-line mount suit it for field-terminated harness work where insulation is not required over the connection.

Same-series siblings at different tab widths

Within the Faston family the 100494-2's 0.187" tab width sits between the 0.250" (6.35mm) 1627194 and the 0.312" (7.92mm) 1377175 — all share tin-plated brass, crimp termination, and free-hanging mount, so the tab width is the selection axis for matching the male blade.

Frequently asked questions

What compliance documentation is available for 100494-2?

The terminal is ROHS3 Compliant per the manufacturer's listing.
