TE Connectivity AMP Connectors 100605-7 — Quick-Disconnect Terminals

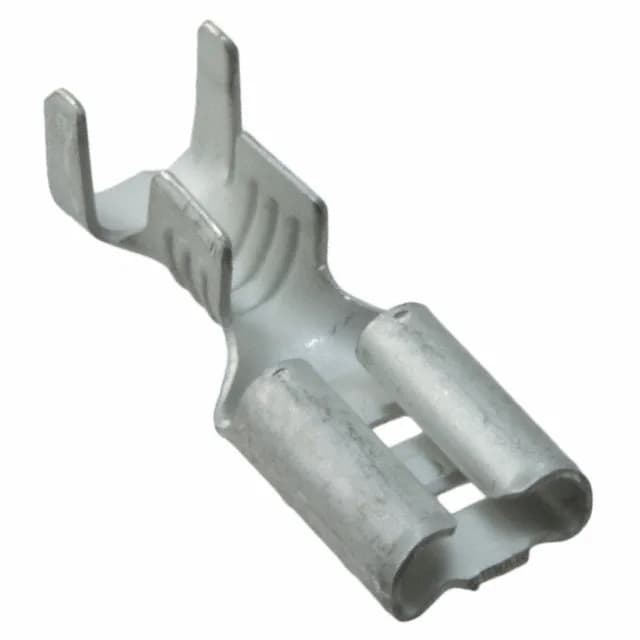

100605-7 Faston 0.250" Receptacle, Female, Tin, 13-17 AWG

MPN100605-7
Active

TE Connectivity Faston receptacle, order code 100605-7, female, 0.250" (6.35mm) tab width, 0.032" (0.81mm) tab thickness, tin-plated phosphor bronze, crimp termination, free hanging, 13-17 AWG, non-insulated.

$0.3300Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesFaston
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

100605-7 specifications
ParameterValue
SeriesFaston
MountingFree Hanging (In-Line)
Terminal typeStandard
Wire gauge13-17 AWG
Tab width0.250\" (6.35mm)
Contact materialPhosphor Bronze
GenderFemale
PackageTape & Reel (TR) Cut Tape (CT)
InsulationNon-Insulated
Tab length0.295\" (7.49mm)
TerminationCrimp
Tab thickness0.032\" (0.81mm)
Contact finishTin
Length - overall0.843\" (21.40mm)
Insulation diameter0.118\" ~ 0.169\" (3.00mm ~ 4.29mm)

Product details

0.250" Faston receptacle for 13-17 AWG

The 100605-7 is a non-insulated Faston receptacle accepting 0.250" (6.35mm) wide tabs, crimped onto 13-17 AWG wire and left free-hanging. The tin-plated phosphor bronze contact carries the current; the 0.032" (0.81mm) tab thickness matches the standard Faston blade profile.

Receptacle comparison across the Faston series

The 100605-7 uses a straight in-line crimp, while the 100645-3 adds a right-angle exit for the same 0.250" tab and 13-17 AWG wire — the right-angle version changes the cable routing but keeps the same tab geometry and insulation diameter range. For finer wire (15-20 AWG) the 100495-2 offers a shorter overall length of 0.752" (19.10mm) with a brass contact; the 170213-3 covers 14-18 AWG with a 0.031" (0.79mm) tab thickness and phosphor bronze contact.

Frequently asked questions

What is the closest functional second-source to 100605-7?

The 100645-3 is a same-series Faston receptacle with the same 0.250" tab width, 13-17 AWG wire range, and tin-plated phosphor bronze contact, but with a right-angle exit instead of straight in-line.

Will 100605-7 drop into a panel specified around 100645-3 without rewiring?

The tab width and thickness are identical (0.250" x 0.032"), so the receptacle mates with the same male tab. The difference is the wire exit angle — straight vs. right-angle — which affects cable routing, not the electrical fit.
