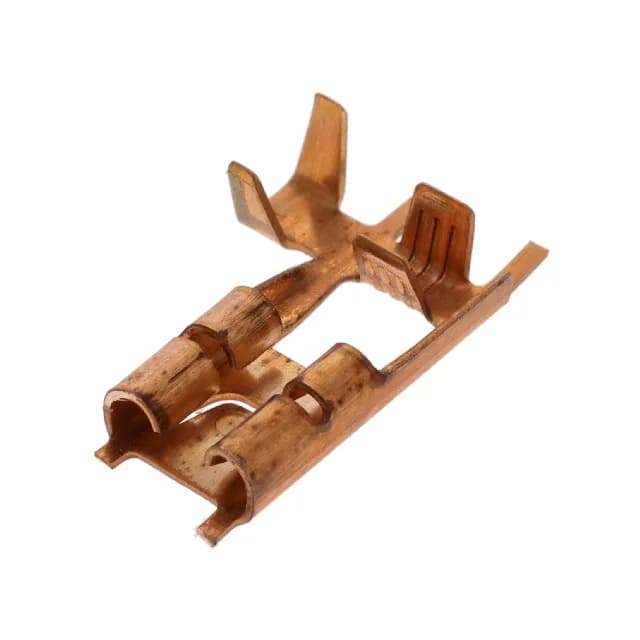

TE Connectivity AMP Faston quick-disconnect terminal, order code 100645-3, female flag receptacle, 0.250" (6.35mm) tab width, 0.032" (0.81mm) tab thickness, 13-17 AWG, non-insulated, crimp termination, free-hanging right-angle mount, phosphor bronze contact.
| Parameter | Value |
|---|---|
| Series | Faston |
| Mounting | Free Hanging (In-Line), Right Angle |
| Terminal type | Angled - 90°, Flag |
| Wire gauge | 13-17 AWG |
| Tab width | 0.250\" (6.35mm) |
| Contact material | Phosphor Bronze |
| Gender | Female |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Insulation | Non-Insulated |
| Tab length | 0.303\" (7.70mm) |
| Termination | Crimp |
| Tab thickness | 0.032\" (0.81mm) |
| Insulation diameter | 0.098\" ~ 0.150\" (2.50mm ~ 3.81mm) |
The 100645-3 is a 90° flag-style female quick-disconnect receptacle from TE's Faston series, accepting 0.250" (6.35mm) wide tabs with 0.032" (0.81mm) thickness. It crimps onto 13-17 AWG wire and mounts free-hanging in-line at a right angle, with a phosphor bronze contact that carries no insulation sleeve.
Both terminals accept 0.250" (6.35mm) tabs with 0.032" (0.81mm) thickness, so the tab interface is identical. The wire gauge ranges differ — 100645-3 accepts 13-17 AWG while 1-1627194-4 accepts 15-18 AWG — so the wire size must be checked against the existing harness.
