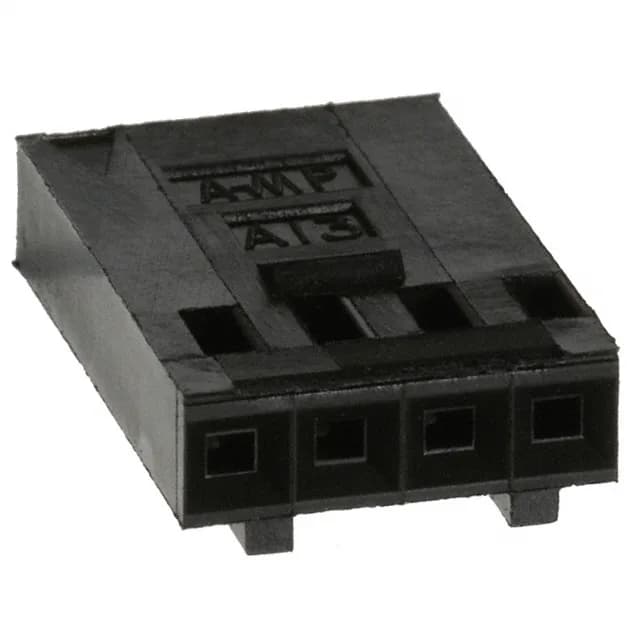

TE Connectivity AMPMODU Mod IV receptacle housing, 102241-2, 4 positions, 0.100" (2.54mm) pitch, single row, locking ramp, free-hanging, crimp termination, black, -65°C to 105°C, RoHS3 compliant.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod IV |
| Type | Female Socket |
| Mounting | Free Hanging (In-Line) |
| Connector type | Receptacle |
| Fastening type | Locking Ramp |
| Operating temperature | -65°C ~ 105°C |
| Color | Black |
| Insulation material | Polyamide (PA), Nylon, Glass Filled |
| Note | Contacts Not Included |
| Pitch | 0.100\" (2.54mm) |
| Package | Bulk |
| Rows | 1 |
| Contact termination | Crimp |
| Positions | 4 |
The TE Connectivity AMPMODU Mod IV 102241-2 is a 4-position, single-row receptacle housing designed for free-hanging wire-to-board or wire-to-wire interconnect.
For a field-service tech, that means you carry spare contacts and a hand crimper, not a whole pre-loaded assembly. The single-row layout keeps the housing narrow, which helps when routing multiple wires through a tight cable channel.
No. The 102241-2 is a receptacle housing only — contacts are not included and must be ordered separately as AMPMODU Mod IV female crimp terminals.
It mates with any single-row, 4-position, 0.100" pitch AMPMODU Mod IV male pin header.
Yes, it is ROHS3 compliant, meeting current EU and North American environmental requirements.
