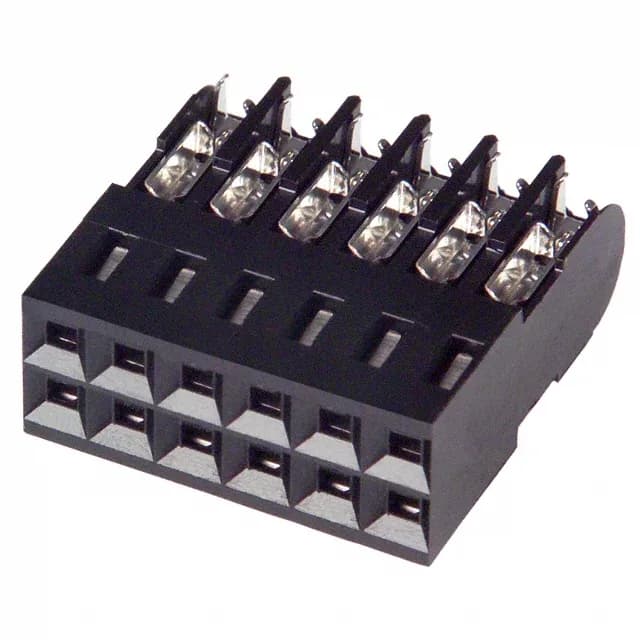

102398-4 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE AMPMODU MT 102398-4, 12P IDC Receptacle, 0.100" Pitch

MPN102398-4
Active

TE Connectivity AMPMODU MT receptacle, 102398-4, 12 positions, 2 rows, 0.100" (2.54mm) pitch, IDC termination, gold 30.0µin (0.76µm) contacts, free hanging in-line, black housing.

$9.1000Ref. price · indicative, final on quote
102398-4 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

102398-4 Technical Specifications
ParameterValue
SeriesAMPMODU MT
Wire typeDiscrete or Ribbon Cable
GenderFemale Socket
Mounting typeFree Hanging (In-Line)
Connector typeReceptacle
Wire gauge22-26 AWG
Cable terminationIDC
ColorBlack
Pitch0.100\" (2.54mm)
PackageTray
FeaturesClosed End
Row spacing0.100\" (2.54mm)
Contact finishGold
Rows2
Positions12
Contact finish thickness30.0µin (0.76µm)

Product details

The TE Connectivity AMPMODU MT 102398-4 is a 12-position, dual-row IDC receptacle in a free-hanging (in-line) housing. It terminates 22-26 AWG discrete or ribbon cable using the insulation-displacement method — no wire stripping or crimping needed. The black housing carries a Closed End feature, meaning the far end of the connector is walled off to prevent contact exposure or stubbing.

For a harness that gets disconnected for service or re-routed during installation, this grade of gold keeps contact resistance stable. Tin or thin-gold flash parts would degrade faster under the same duty.

RoHS Status — Plan Around It

This part is RoHS non-compliant. That means it contains lead or another restricted substance above the exemption threshold. For EU-market builds or any project governed by RoHS, this receptacle cannot be used without a specific exemption. Check your compliance requirements before specifying it into a BOM.

Frequently asked questions

Is 102398-4 compatible with 22-26 AWG ribbon cable?

Yes. The 102398-4 is specified for 22-26 AWG discrete or ribbon cable. The IDC termination contacts are designed to pierce the insulation of ribbon cable in that gauge range without stripping.

Is 102398-4 RoHS compliant?

No. The 102398-4 is marked RoHS non-compliant. It contains lead or other restricted substances above the exemption threshold and cannot be used in RoHS-governed assemblies without a specific exemption.

What is the mating connector for 102398-4?

The 102398-4 mates with a standard AMPMODU MT 0.100" (2.54mm) pitch pin header. The free-hanging receptacle latches onto the header pins.
