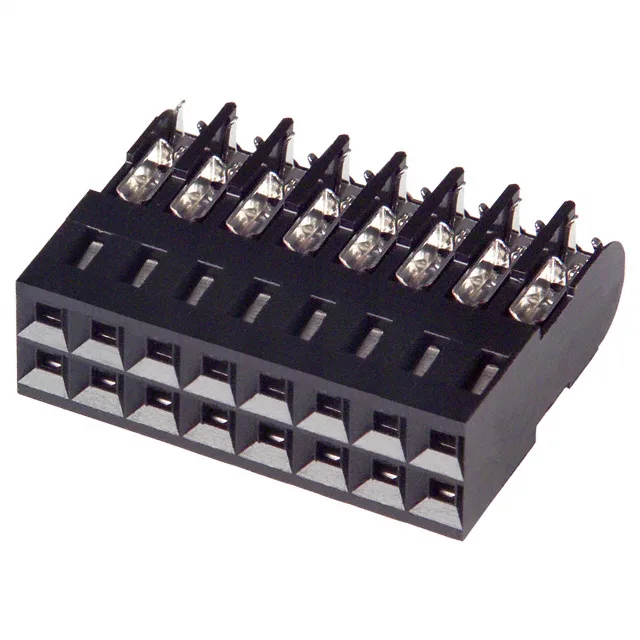

102448-6 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE AMPMODU MT 102448-6, 16P IDC Receptacle, 0.100" Pitch

MPN102448-6
Active

TE Connectivity AMPMODU MT 102448-6, IDC receptacle, 16 positions, 2 rows, 0.100" (2.54mm) pitch, 20-22 AWG, gold 30.0µin (0.76µm) contact finish, free hanging, tray.

$13.2500Ref. price · indicative, final on quote
102448-6 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

102448-6 Technical Specifications
ParameterValue
SeriesAMPMODU MT
Wire typeDiscrete or Ribbon Cable
GenderFemale Socket
Mounting typeFree Hanging (In-Line)
Connector typeReceptacle
Wire gauge20-22 AWG
Cable terminationIDC
ColorBlack
Pitch0.100\" (2.54mm)
PackageTray
FeaturesClosed End
Row spacing0.100\" (2.54mm)
Contact finishGold
Rows2
Positions16
Contact finish thickness30.0µin (0.76µm)

Product details

The TE Connectivity AMPMODU MT 102448-6 is a 16-position, dual-row IDC receptacle built for mass-terminating 0.100-inch (2.54mm) pitch ribbon cable or discrete 20-22 AWG wire.

The IDC (Insulation Displacement Connection) termination presses the cable onto bifurcated contacts that pierce the insulation — no stripping, no crimping, just a one-shot press with a hand tool or arbor press. The 20-22 AWG wire gauge range covers the standard 0.1-inch pitch ribbon cable conductor sizes. The closed-end feature means the back of the connector is fully shrouded, protecting the termination points from accidental shorts or debris ingress in a harness assembly.

The 16-position count matches 16-conductor ribbon cable, a common width for parallel interfaces like ATA, GPIO, or general-purpose signal buses.

Frequently asked questions

What is the pitch of 102448-6?

The pitch is 0.100" (2.54mm) for both the position spacing and the row spacing, matching standard 0.1-inch header pin fields.
