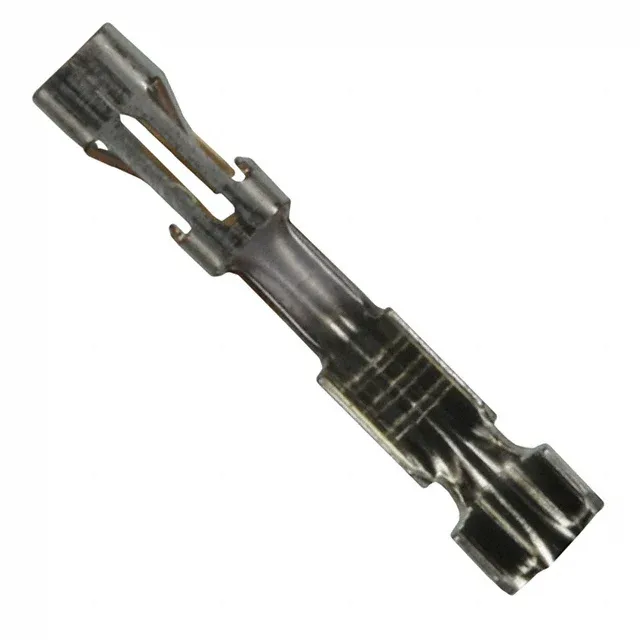

TE Connectivity AMP Connectors AMPMODU Mod IV 1/2 crimp socket, order code 103171-4, 22-26 AWG, gold contact finish 30.0µin (0.76µm), crimp termination, socket contact.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod IV 1/2 |
| Wire gauge | 22-26 AWG |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Pin or socket | Socket |
| Contact finish | Gold |
| Contact termination | Crimp |
| Contact finish thickness | 30.0µin (0.76µm) |
Within the AMPMODU Mod IV 1/2 family, the 103171-4 is a socket contact for 22-26 AWG, while peer 1-1326032-0 is a socket for 16 AWG with tin finish, peer 929989-8 is a socket for 17-20 AWG with tin finish, and peer 1326031-9 is a blade contact for 16 AWG with tin finish — the wire gauge and plating grade differ across the series, so select the contact by wire size and mating surface requirement.
The 103171-4 accepts 22-26 AWG wire with a crimp termination.
