TE Connectivity AMP Connectors 103171-5 — Crimp Contacts & Pins

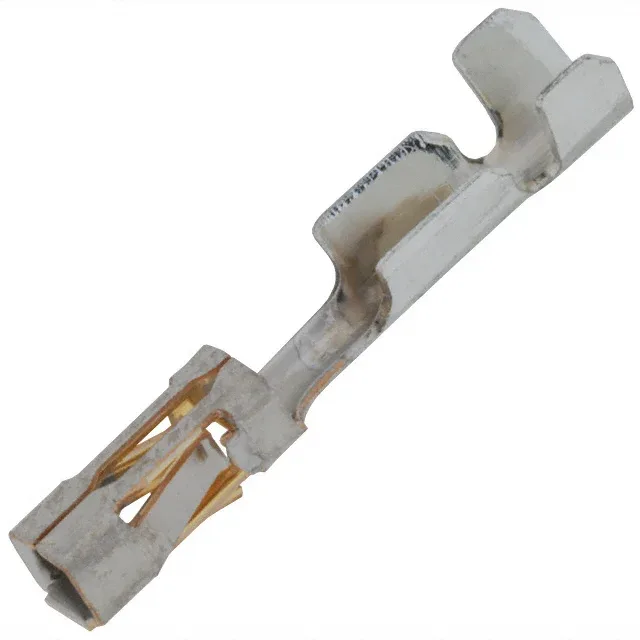

103171-5 TE AMPMODU Mod IV Socket Contact, 22-26 AWG, Gold

MPN103171-5
Active

TE Connectivity AMP Connectors AMPMODU Mod IV 1/2 socket contact, order code 103171-5, 22-26 AWG, gold-plated 30.0µin (0.76µm), crimp termination, bulk packaging.

$0.5500Ref. price · indicative, final on quote
RoHSNot applicable
SeriesAMPMODU Mod IV 1/2
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

103171-5 specifications
ParameterValue
SeriesAMPMODU Mod IV 1/2
Wire gauge22-26 AWG
PackageBulk
Pin or socketSocket
Contact finishGold
Contact terminationCrimp
Contact finish thickness30.0µin (0.76µm)

Product details

Contact system & plating

The 103171-5 is a socket contact in the AMPMODU Mod IV 1/2 series, terminated by crimp and plated with 30.0µin (0.76µm) gold over the mating surface. It accepts 22-26 AWG wire and ships in bulk packaging.

Plating grade & wire range

By contrast, the 1-1326032-0 socket contact uses tin plating and accepts 16 AWG for power duty — the plating grade and wire gauge distinguish signal from power contacts within the AMPMODU family.

Frequently asked questions

What wire gauge and termination does the 103171-5 accept?

It accepts 22-26 AWG wire and terminates by crimp.
