TE Connectivity AMP Connectors 103653-7

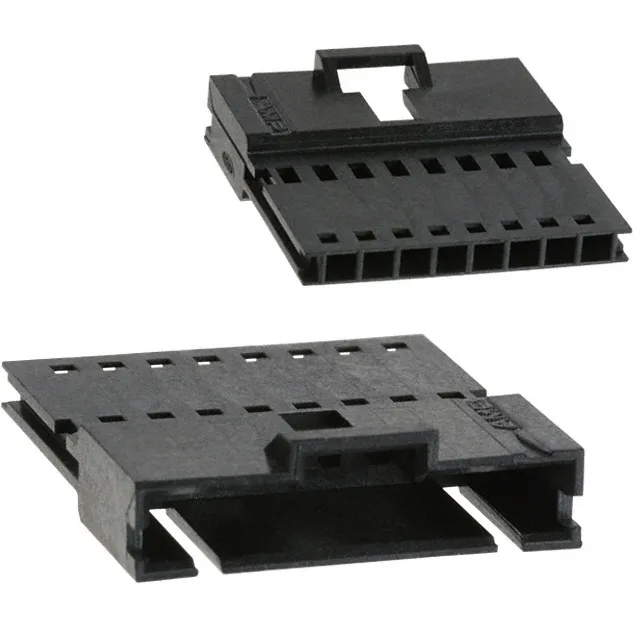

TE AMPMODU MTE 103653-7, 8-Pos Plug Housing, 0.100" Pitch

MPN 103653-7
Active

TE Connectivity AMPMODU MTE plug housing, 103653-7, 8 positions, 0.100" (2.54 mm) pitch, single row, free-hanging, latch holder, crimp termination, black LCP, -65°C to 105°C.

$1.3100 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesAMPMODU MTE
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

103653-7 specifications
ParameterValue
SeriesAMPMODU MTE
TypeMale Pin
MountingFree Hanging (In-Line)
Connector typePlug
Fastening typeLatch Holder
Operating temperature-65°C ~ 105°C
ColorBlack
Insulation materialLiquid Crystal Polymer (LCP)
NoteContacts Not Included
Pitch0.100\" (2.54mm)
PackageBulk
Rows1
Contact terminationCrimp
Positions8

Product details

8-Position AMPMODU MTE Plug Housing, 0.100" Pitch

The TE Connectivity 103653-7 is an 8-position plug housing from the AMPMODU MTE series. The housing is molded from black Liquid Crystal Polymer (LCP) and uses a latch holder for positive retention when mated. Typical applications include wire-to-board and wire-to-wire interconnects in industrial controls, automotive body electronics, and telecom equipment where a compact, reliable crimp interface is needed.

Contacts Are Ordered Separately

The listing explicitly states Contacts Not Included. This housing accepts the AMPMODU MTE crimp male pin terminals — order those as a separate line item. The crimp termination allows field assembly with standard tooling, and the LCP housing withstands the crimp insertion force without cracking.

Latch Holder for Vibration Resistance

The latch holder fastening type provides a positive lock when the plug is mated with the corresponding receptacle. This is a practical feature for free-hanging harnesses in environments with vibration or cable strain — the latch prevents the connector from backing off over time.

MPN
103653-7
