TE Connectivity AMP Connectors 103653-9

TE 103653-9 AMPMODU MTE 10-Pos Plug Housing, 2.54mm

MPN 103653-9
Active

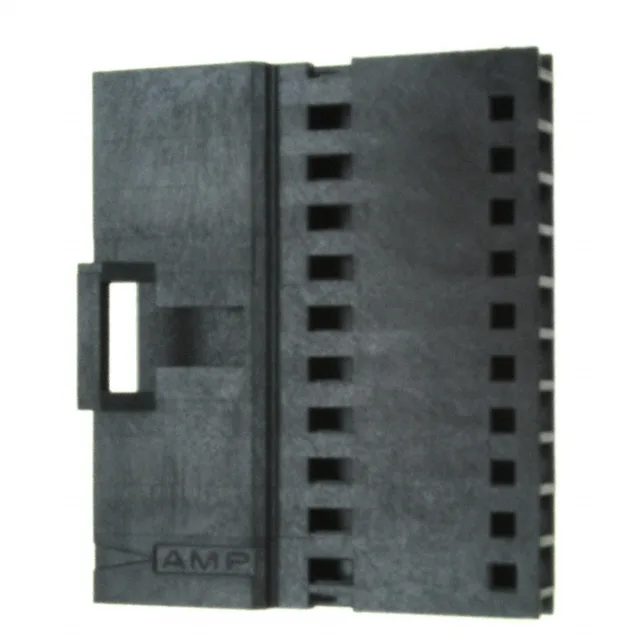

TE Connectivity AMPMODU MTE, 10 Position, 1 Row, 0.100" (2.54mm) Pitch, Plug Housing, Crimp Termination, Black, Free Hanging, Latch Holder.

$1.2700 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesAMPMODU MTE
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

103653-9 specifications
ParameterValue
SeriesAMPMODU MTE
TypeMale Pin
MountingFree Hanging (In-Line)
Connector typePlug
Fastening typeLatch Holder
Operating temperature-65°C ~ 105°C
ColorBlack
Insulation materialLiquid Crystal Polymer (LCP)
NoteContacts Not Included
Pitch0.100\" (2.54mm)
PackageBulk
Rows1
Contact terminationCrimp
Positions10

Product details

The TE Connectivity 103653-9 is a 10-position, single-row plug housing from the AMPMODU MTE series. This is the shell only — it ships without contacts, which must be ordered separately as AMPMODU MTE crimp terminals.

Mating and Termination

This plug housing mates with the matching AMPMODU MTE receptacle housing (same 0.100" pitch, same latch system). Termination is crimp-style — the user selects the appropriate AMPMODU MTE male pin contact (sold separately) and crimps it onto the wire using a TE-certified hand tool or automatic lead machine. The latch holder on the housing provides audible and tactile feedback when fully mated, which is useful in harness assembly where pull-test verification is standard.

MPN
103653-9
