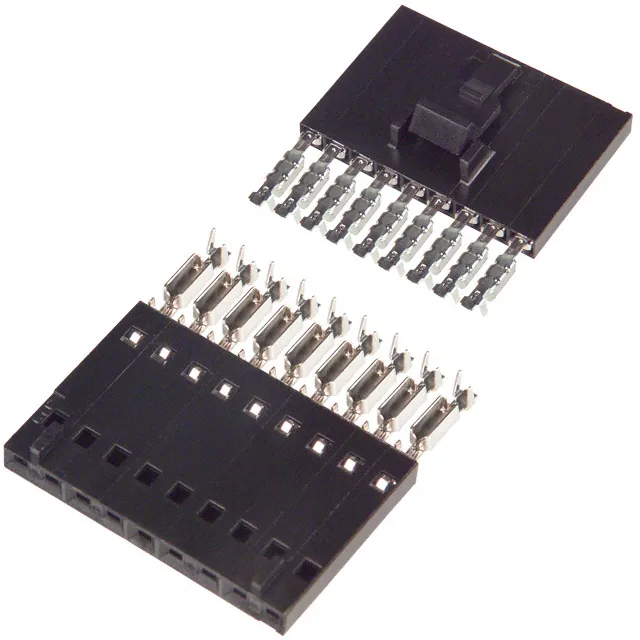

103958-8 — TE Connectivity AMP Connectors product photo

103958-8 TE AMPMODU MTE 9-Pos IDC Receptacle, 0.100" Pitch

MPN103958-8
Active

TE Connectivity AMPMODU MTE receptacle, 103958-8, 9 positions, 1 row, 0.100" (2.54 mm) pitch, IDC termination, 22-26 AWG, female socket, gold 30.0 µ" (0.76 µm) contacts, latch lock, free hanging, black, tube.

$2.3450Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

103958-8 Technical Specifications
ParameterValue
SeriesAMPMODU MTE
Wire typeDiscrete or Ribbon Cable
GenderFemale Socket
Mounting typeFree Hanging (In-Line)
Connector typeReceptacle
Fastening typeLatch Lock
Wire gauge22-26 AWG
Cable terminationIDC
ColorBlack
Pitch0.100\" (2.54mm)
PackageTube
FeaturesClosed End
Contact finishGold
Rows1
Positions9
Contact finish thickness30.0µin (0.76µm)

Product details

The TE Connectivity AMPMODU MTE 103958-8 is a 9-position, single-row IDC receptacle designed for discrete or ribbon cable.

The closed-end feature means the housing has a solid back wall, so the IDC slot is fully enclosed; this prevents wire stubs from protruding past the contact area.

The 103958-8 mates with any AMPMODU MTE unshrouded header of the same 9-position count and 0.100" pitch — typically the 103956-series or 103935-series headers from TE. No stripping or crimping is required for the wire termination, but the connector housing itself is free-hanging (in-line), so it is not board-mounted — it terminates the cable end, and the header sits on the PCB.

Frequently asked questions

Is 103958-8 RoHS compliant?

No — the 103958-8 is listed as RoHS non-compliant. If your application requires RoHS conformance, check the base product number 103958 for alternative suffix options from TE that may carry RoHS compliance.
