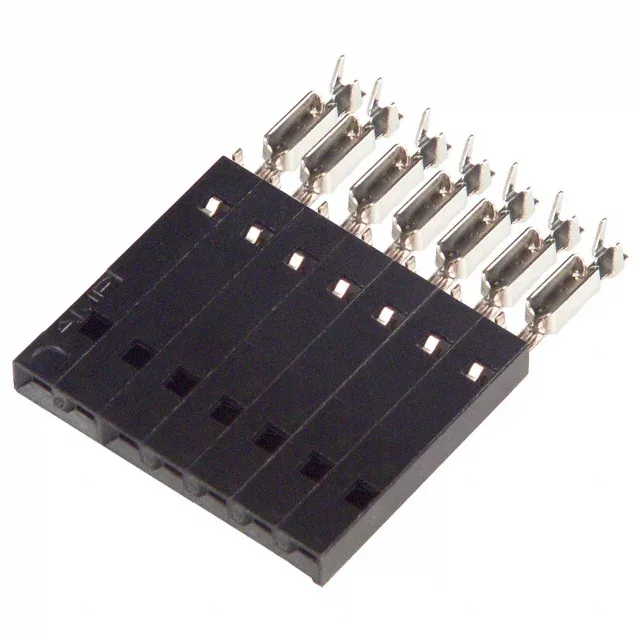

103975-6 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE AMPMODU MTE 103975-6, 7-Pos IDC Receptacle, 0.100" Pitch

MPN103975-6
Active

TE Connectivity AMPMODU MTE receptacle, 103975-6, 7 positions, 1 row, 0.100" (2.54mm) pitch, IDC termination, 22-26 AWG, gold contact finish 15.0µin, free hanging, black, closed end.

$3.5150Ref. price · indicative, final on quote
103975-6 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

103975-6 Technical Specifications
ParameterValue
SeriesAMPMODU MTE
Wire typeRibbon Cable
GenderFemale Socket
Mounting typeFree Hanging (In-Line)
Connector typeReceptacle
Wire gauge22-26 AWG
Cable terminationIDC
ColorBlack
Pitch0.100\" (2.54mm)
PackageTube
FeaturesClosed End
Contact finishGold
Rows1
Positions7
Contact finish thickness15.0µin (0.38µm)

Product details

The TE Connectivity AMPMODU MTE 103975-6 is a 7-position, single-row IDC receptacle designed for mass-termination to 22-26 AWG ribbon cable. The closed-end design prevents the cable from pushing through the housing during termination, which keeps the wire registration consistent across all seven positions.

The IDC termination is a one-step mass-termination process: the ribbon cable is pressed into the insulation displacement slots, which pierce the insulation and make contact with the conductors. No wire stripping or crimping is needed. The free-hanging (in-line) mounting style means the connector is used as a cable-end receptacle, not a board-mounted part. The 22-26 AWG range covers standard 0.050" pitch ribbon cable, which is the most common type for IDC applications.

Frequently asked questions

Is 103975-6 RoHS compliant?

No, the 103975-6 is RoHS non-compliant. It cannot be used in EU RoHS-regulated products. For RoHS-compliant alternatives, check the AMPMODU MTE series for parts with RoHS-compliant plating options.

What is the mating connector for 103975-6?

The 103975-6 mates with the AMPMODU MTE male header (pin header) in the same 0.100" pitch, single-row configuration. The exact mating part number depends on the pin count and header style (vertical or right-angle, through-hole or SMT).

What wire gauge does 103975-6 accept?

The 103975-6 accepts 22-26 AWG ribbon cable for IDC termination. This covers standard 0.050" pitch ribbon cable, which is the most common type used with 0.100" pitch IDC connectors.
