TE Connectivity AMP Connectors 104422-2 — Connector Housings

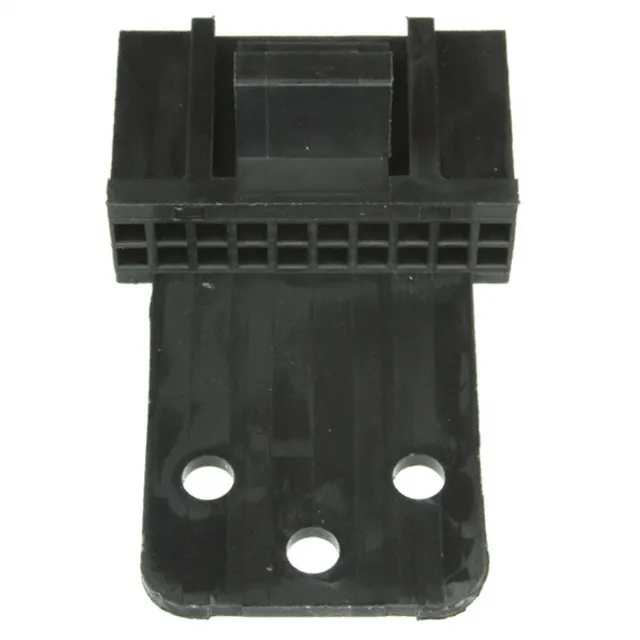

TE AMPMODU Mod IV 104422-2 Receptacle Housing, 20 Pos

MPN104422-2
Active

TE Connectivity AMPMODU Mod IV receptacle housing, 104422-2, 20 positions, dual-row, 0.100" (2.54mm) pitch, free-hanging, crimp termination, locking ramp, black thermoplastic, strain relief, RoHS.

$2.8900Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesAMPMODU Mod IV
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

104422-2 specifications
ParameterValue
SeriesAMPMODU Mod IV
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Fastening typeLocking Ramp
Operating temperature-65°C ~ 105°C
ColorBlack
Insulation materialThermoplastic
NoteContacts Not Included
Pitch0.100\" (2.54mm)
PackageBulk
FeaturesStrain Relief
Row spacing0.100\" (2.54mm)
Rows2
Contact terminationCrimp
Positions20

Product details

The locking ramp on each side holds the pair together in vibration — common in industrial control cabinets, automotive harnesses, and equipment where the connector sees movement.

The integrated strain relief at the back of the housing grips the wire bundle and reduces pull-out at the contact retention tines. If you're re-pinning an existing harness, the same contact family crosses into the 104422-2 housing.

How It Compares to a Sibling

The closest peer in the same series is the 1-2333134-5, a 30-position dual-row receptacle at 0.079" (2.00mm) pitch. The 104422-2 runs the standard 0.100" pitch, so the footprint and header compatibility are different — the 20-position housing mates with a 2x10 header, while the 30-position mates with a 2x15 header at the tighter pitch. Choose by circuit count and board footprint, not by housing form factor.

Frequently asked questions

Where can I buy 104422-2 and how do I get pricing?

The 104422-2 is sourced to order through independent distribution. Submit an RFQ for current pricing and lead time — availability is confirmed at quote time against your quantity.

What contacts are compatible with 104422-2?

The 104422-2 accepts AMPMODU Mod IV female crimp socket terminals, ordered separately. The housing does not include contacts. Use the same contact series for field re-pinning.
