The 104482-7: It's a free-hanging (in-line) crimp-style housing — the kind you'd use to build a custom harness on a bench or re-pin a field assembly. Here's the catch that trips people up: contacts are not included.

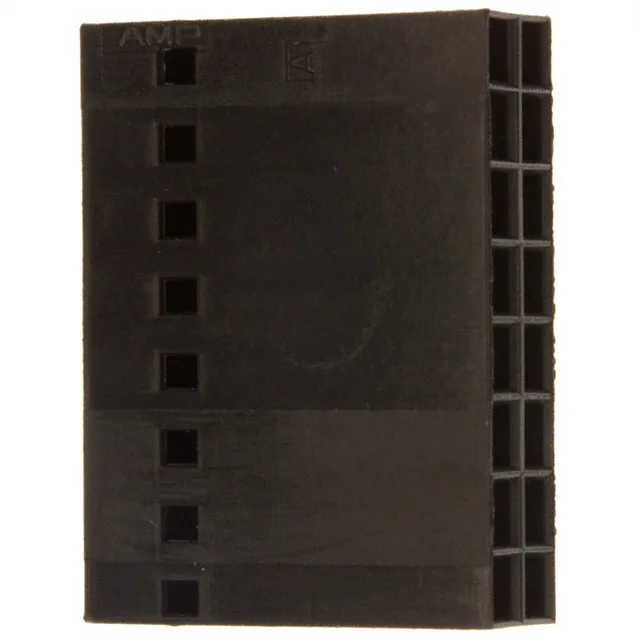

TE AMPMODU 104482-7 Receptacle Housing, 16 Pos, 2.54mm
MPN104482-7
Active
TE Connectivity AMPMODU receptacle housing, 16 positions, 2.54mm pitch, dual row, free-hanging, crimp termination, black thermoplastic, -65°C to 125°C.
$1.5800Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesAMPMODU
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU |
| Type | Female Socket |
| Mounting | Free Hanging (In-Line) |
| Connector type | Receptacle |
| Operating temperature | -65°C ~ 125°C |
| Color | Black |
| Insulation material | Thermoplastic |
| Note | Contacts Not Included |
| Pitch | 0.100\" (2.54mm) |
| Package | Bulk |
| Row spacing | 0.100\" (2.54mm) |
| Rows | 2 |
| Contact termination | Crimp |
| Positions | 16 |
Product details
Frequently asked questions
Does 104482-7 come with contacts?
No — the listing explicitly notes 'Contacts Not Included'. The 104482-7 is just the receptacle housing. You need to order the matching AMPMODU female socket contacts (crimp terminals) separately and terminate them onto your wire.
What is the mating connector for 104482-7?
It mates with a 2-row, 0.100" (2.54mm) pitch AMPMODU pin header — typically a through-hole or surface-mount header from the same series.
