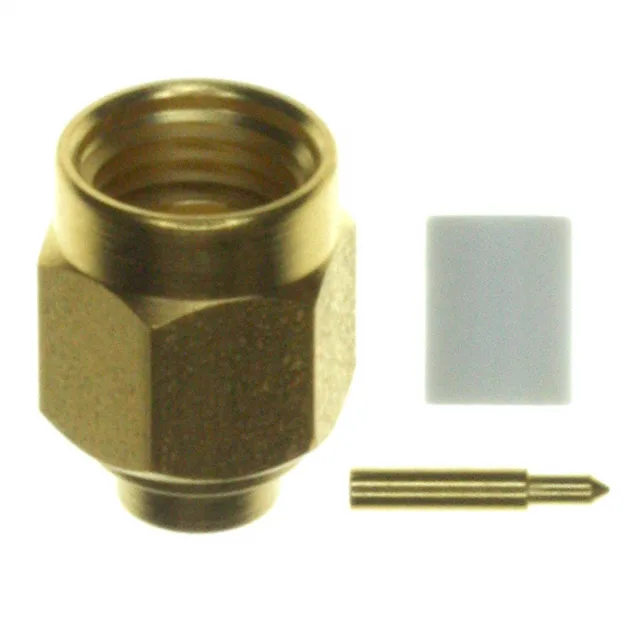

TE Connectivity SMA plug, male pin, 50 Ohm, 18 GHz, RG-402 (.141" Semi Rigid) cable, gold body finish, threaded coupling, solder termination, Bulk.
| Parameter | Value |
|---|---|
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug, Male Pin |
| Fastening type | Threaded |
| Voltage rating | 500 V |
| Frequency - max | 18 GHz |
| Cable group | RG-402 (.141\" Semi Rigid) |
| Operating temperature | -65°C~125°C |
| Body material | Stainless Steel |
| Housing color | Gold |
| Dielectric material | Polytetrafluoroethylene (PTFE) |
| Center contact material | Beryllium Copper |
| Package | Bulk |
| Parameter | Value |
|---|---|
| Impedance | 50Ohm |
| Body finish | Gold |
| Mating cycles | 500 |
| Number of ports | 1 |
| Shield termination | Solder |
| Contact termination | Solder |
| Center contact plating | Gold |
The 1050524-1: The threaded coupling provides a vibration-resistant mate, and the 500 V rating gives headroom for RF power applications beyond pure signal-level work.
The stainless steel body with gold finish resists corrosion in field environments.
Submit a request for current pricing and availability — the supply posture is confirmed at quote time.
This SMA plug is designed for RG-402 (.141" semi-rigid) cable. Both the center conductor and shield are solder-terminated.
The 1050524-1 is a 50 Ohm SMA plug, matching the standard RF system impedance for most microwave and telecom applications.
