RF Interconnect Field Note

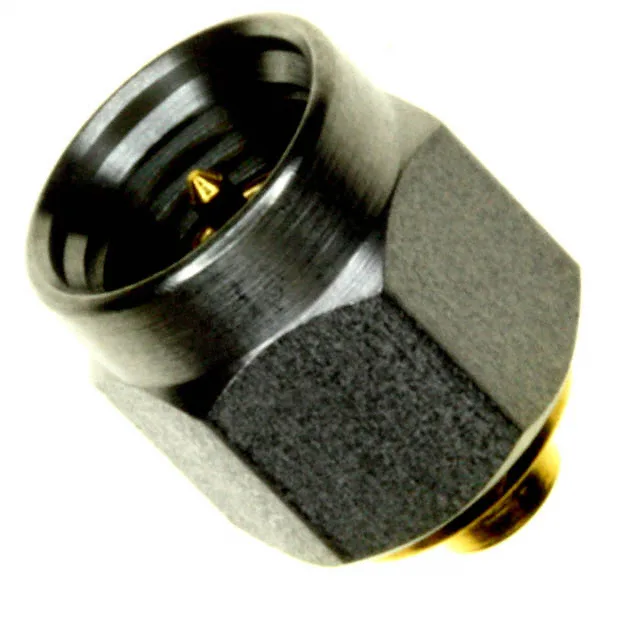

The threaded coupling gives a vibration-resistant mate, and the gold-over-beryllium copper centre contact with gold/passivated stainless steel body supports 500 mating cycles before the plating wear raises contact resistance. This is a single-port, free-hanging (in-line) connector with solder termination on both the centre contact and shield.
Sourcing & Lifecycle
This part is listed as Obsolete by the manufacturer. For a BOM that requires this exact SMA plug, submit a request for a same-day quote; the storefront sources from independent distribution and does not hold stock.
Cable & Termination Fit
The 1050735-1 is built specifically for RG-405 (.085" semi-rigid) cable. No crimp tooling is required — the installer needs a soldering iron and a fixture to hold the cable square during assembly. Mating half is any standard SMA female jack with threaded coupling.
