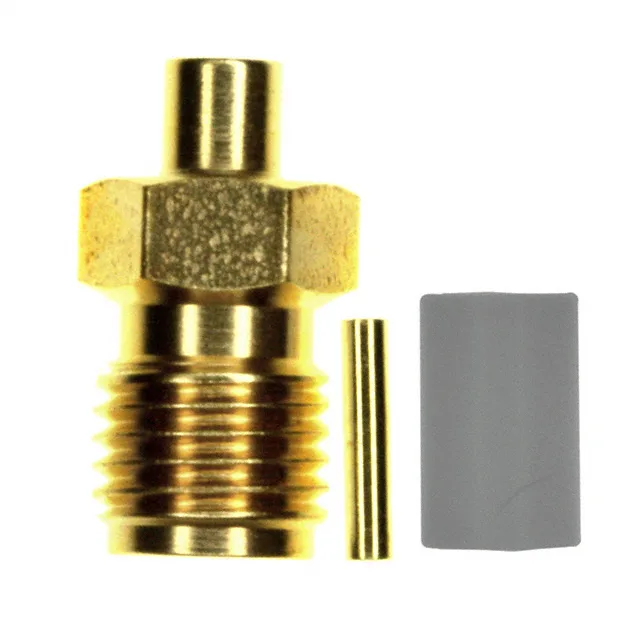

1050859-1 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE Connectivity 1050859-1 SMA Jack, 50 Ohm, 18 GHz, RG-405

MPN1050859-1
Active

TE Connectivity SMA jack, female socket, 50 Ohm, 18 GHz, for RG-405 (.085" Semi Rigid) cable, gold-plated stainless steel body, threaded coupling, 500 mating cycles, -65°C to 105°C.

$14.7800Ref. price · indicative, final on quote
1050859-1 datasheet
StockIn Stock (37)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

1050859-1 Technical Specifications
ParameterValue
Mounting typeFree Hanging (In-Line)
Connector typeJack, Female Socket
Fastening typeThreaded
Voltage rating335 V
Frequency - max18 GHz
Cable groupRG-405 (.085\" Semi Rigid)
Operating temperature-65°C~105°C
Body materialStainless Steel
Housing colorGold
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBeryllium Copper
PackageBulk
Includes2 pcs - 1 Connector, 1 Contact
Impedance50Ohm
Body finishGold
Mating cycles500
Insertion loss0.3dB
Number of ports1
Shield terminationSolder
Contact terminationSolder
Center contact platingGold

Product details

SMA Jack for RG-405 Semi-Rigid Cable

The gold-plated stainless steel body and threaded fastening provide a secure, corrosion-resistant RF interconnect for test equipment, antenna feeds, and instrumentation where the cable run is permanently formed and soldered.

Cable Prep and Termination

This connector is a free-hanging, in-line jack that terminates to RG-405 semi-rigid cable. The kit includes the connector body and one contact; you supply the cable and the soldering iron.

Threaded coupling means the nut must be torqued to spec each time — finger-tight is not enough for a stable RF ground.

Frequently asked questions

What cable type does 1050859-1 mate with?

The 1050859-1 is designed for RG-405 (.085" Semi Rigid) cable. The shield and center conductor are solder-terminated to the connector body and contact.

What is the impedance of 1050859-1?

The 1050859-1 is a 50 Ohm SMA jack, rated to 18 GHz with an insertion loss of 0.3 dB.
