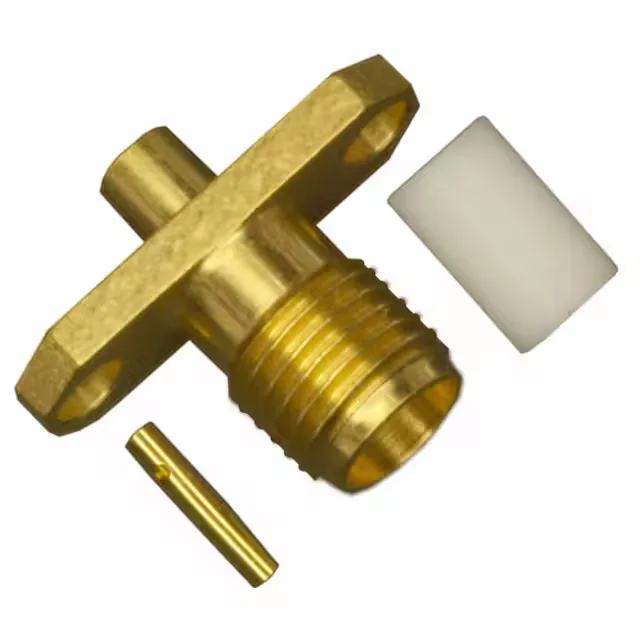

1051046-1 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE Connectivity 1051046-1 SMA Jack, 50 Ohm, 18 GHz, Obsolete

MPN1051046-1
Obsolete

TE Connectivity SMA jack, female socket, 50 Ohm, 18 GHz, panel mount with flange, solder termination, RG-405 (.085" Semi Rigid) cable group, gold body finish, 500 mating cycles, 335 V.

$10.5200Ref. price · indicative, final on quote
1051046-1 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

1051046-1 Technical Specifications
ParameterValue
Mounting typePanel Mount
Connector typeJack, Female Socket
Fastening typeThreaded
Voltage rating335 V
Frequency - max18 GHz
Mounting featureFlange
Cable groupRG-405 (.085\" Semi Rigid)
Operating temperature-65°C~165°C
Body materialStainless Steel
Housing colorGold
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBeryllium Copper
PackageBulk
Impedance50Ohm
Body finishGold
Mating cycles500
Number of ports1
Shield terminationSolder
Contact terminationSolder
Center contact platingGold

Product details

SMA panel-mount jack for .085" semi-rigid cable

It presents a 50 Ohm impedance and is rated to 18 GHz maximum frequency, with a threaded fastening type and flange mounting feature for secure panel attachment. The stainless steel body carries a gold finish, and the centre contact is gold-plated beryllium copper.

The 18 GHz frequency ceiling and 50 Ohm impedance define this as a standard SMA interface for microwave signal paths up to K-band. The 500 mating cycles are typical for a gold-plated SMA — the gold-on-gold contact interface handles repeated connect-disconnect in test or field-service scenarios without significant degradation. The shield termination is solder, matching the semi-rigid cable jacket attachment method common in.085" assemblies.

The 1051046-1 is listed as Obsolete by the manufacturer. No official direct replacement or successor order code is recorded.

Frequently asked questions

Where can I buy 1051046-1 available via RFQ confirmation?

The 1051046-1 is obsolete per the manufacturer. It is sourced through independent distribution against an RFQ — current availability and pricing are confirmed at quote time. Contact the storefront with your quantity for a same-day quote.

What cable group is compatible with 1051046-1?

The 1051046-1 is designed for RG-405 (.085" Semi Rigid) cable. It is not specified for RG-316 or other cable groups.

Is 1051046-1 compatible with SMA connectors?

Yes, the 1051046-1 is an SMA jack, female socket, with a threaded fastening type — it mates with standard SMA plugs.

What is the impedance of 1051046-1?

The 1051046-1 is a 50 Ohm impedance connector, rated to 18 GHz maximum frequency.
