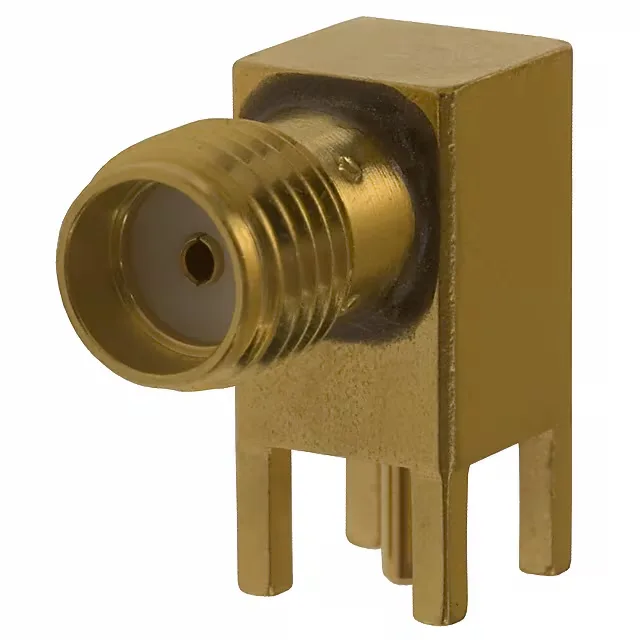

1053378-1 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE Connectivity 1053378-1 SMA Receptacle, 50 Ohm

MPN1053378-1
Obsolete

TE Connectivity SMA receptacle, 50 Ohm, right-angle through-hole, gold-plated stainless steel body, solder termination, 1 port, 12.4 GHz max frequency, 335 V rating, 500 mating cycles.

$4.6300Ref. price · indicative, final on quote
1053378-1 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

1053378-1 Technical Specifications
ParameterValue
Mounting typeThrough Hole, Right Angle
Connector typeReceptacle, Female Socket
Fastening typeThreaded
Voltage rating335 V
Frequency - max12.4 GHz
Operating temperature-65°C~125°C
Body materialStainless Steel
Housing colorGold
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBeryllium Copper
PackageBulk
Impedance50Ohm
Body finishGold
Mating cycles500
Number of ports1
Shield terminationSolder
Contact terminationSolder
Center contact platingGold

Product details

SMA Receptacle, Right-Angle Through-Hole — 50 Ohm, 12.4 GHz

The 1053378-1: The gold-plated stainless steel body gives it corrosion resistance and a clean ground path, while the PTFE dielectric keeps the signal stable across the band.

The centre contact terminates by solder cup, and the shield is soldered to the board ground plane through the through-hole legs.

The 12.4 GHz ceiling covers L-band, S-band, C-band, and most of X-band; if your signal sits above that, you need a higher-frequency SMA variant.

Frequently asked questions

Is 1053378-1 obsolete?

If obsolete, buyers must urgently find a replacement to avoid production delays.

What is the replacement for 1053378-1?

Critical for BOM lifecycle management and sustaining long-term supply.

What distributor has 1053378-1 in stock?

Sourcing buyers need immediate availability or last-time buy options.

Does 1053378-1 mate with a standard SMA plug?

Ensures compatibility with existing cable assemblies or test equipment.

What is the cross reference for 1053378-1?

Helps find equivalent parts from other brands for second sourcing.

What is the operating temperature range of 1053378-1?

Needed for reliability assessment in harsh environment applications.
