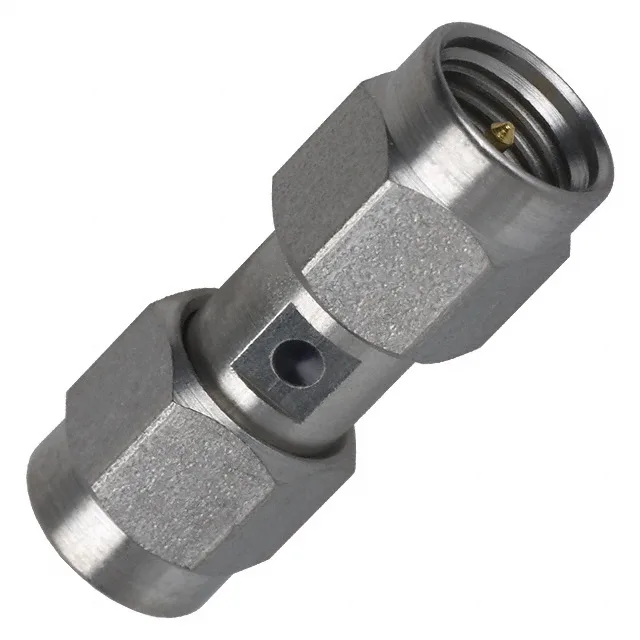

1053635-1 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE Connectivity 1053635-1 SMA Plug-to-Plug Adapter, 50 Ohm

MPN1053635-1
Active

TE Connectivity SMA plug-to-plug adapter, male to male, 50 Ohms, 18 GHz max frequency, straight body, free hanging in-line mount, stainless steel body, gold-plated beryllium copper center contacts, 500 mating cycles.

$36.0300Ref. price · indicative, final on quote
1053635-1 datasheet
StockIn Stock (47)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

1053635-1 Technical Specifications
ParameterValue
Adapter typePlug to Plug
Mounting typeFree Hanging (In-Line)
Adapter seriesOSM to OSM
Fastening typeThreaded, Threaded
Conversion typeSame Series
Frequency - max18 GHz
Operating temperature-65°C ~ 105°C
Body materialStainless Steel
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBeryllium Copper
StyleStraight
PackageBulk
Impedance50 Ohms
Center genderMale to Male
Mating cycles500
Center contact platingGold
Convert to (Adapter end)SMA Plug, Male Pin
Convert from (Adapter end)SMA Plug, Male Pin

Product details

The 1053635-1: It's a same-series (OSM to OSM) conversion adapter, meaning it doesn't change connector type; it just extends or re-routes the signal through a threaded, free-hanging in-line body. The stainless steel shell and gold-plated beryllium copper centre contacts are built for field-service duty where the adapter gets connected and disconnected repeatedly — 500 mating cycles before the contact resistance drifts.

What the 50 Ohm and 18 GHz Ratings Mean for Your Signal Path

The 18 GHz max frequency means it's usable through the full Ku-band and into the lower Ka-band; above that the VSWR climbs and the adapter starts reflecting power back toward the source. A brass contact would take a set after a few hundred cycles; this one won't.

Frequently asked questions

Is 1053635-1 a male to male adapter?

Yes, the 1053635-1 is an SMA plug-to-plug adapter with male pins on both ends (male to male). It connects two female SMA ports in a straight, in-line configuration.

How many mating cycles does 1053635-1 have?

The gold-plated beryllium copper centre contacts maintain low contact resistance through that service life without fretting or taking a set.
