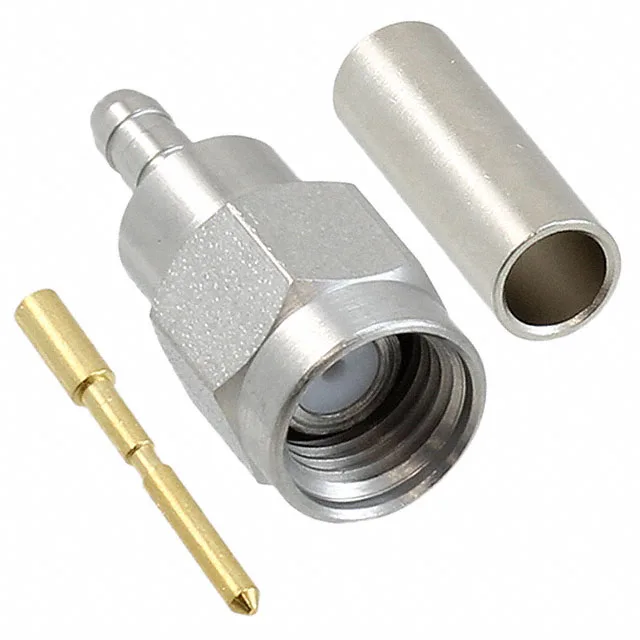

1056436-1 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE Connectivity 1056436-1 SMA Plug, 50 Ohm, 12.4 GHz

MPN1056436-1
Obsolete

TE Connectivity SMA plug, male pin, 50 Ohms, 12.4 GHz, RG-316 double-braid cable, crimp/solder termination, stainless steel body, gold-plated brass centre, -65°C to 165°C, 500 mating cycles, threaded fastening, 1 port, bulk pack.

$5.8600Ref. price · indicative, final on quote
1056436-1 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

1056436-1 Technical Specifications
ParameterValue
Mounting typeFree Hanging (In-Line)
Connector typePlug, Male Pin
Fastening typeThreaded
Voltage rating250 V
Frequency - max12.4 GHz
Cable groupRD-316 Double Braid
Operating temperature-65°C ~ 165°C
Body materialStainless Steel
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBrass
PackageBulk
Impedance50 Ohms
Mating cycles500
Number of ports1
Shield terminationCrimp
Contact terminationSolder
Center contact platingGold

Product details

Termination: Crimp Shield, Solder Centre

The 1056436-1: Shield termination is crimp; the centre conductor is soldered. That hybrid is standard for RG-316 — the crimp grabs the double braid for a solid ground reference, and the solder joint on the centre pin gives a low-resistance DC path. You can field-terminate this with a basic crimp tool and a soldering iron; no specialised RF launch fixture needed. The threaded coupling nut (fastening type: threaded) gives a vibration-resistant mate that holds its torque under 500 mating cycles.

Obsolete — Sourcing Reality

The 1056436-1 is listed as Obsolete. If you are qualifying a new build, look at current TE SMA plugs in the same mechanical footprint (threaded, crimp/solder, RG-316) as a form-fit-function cross.

Rated for 500 mating cycles. The gold-on-brass centre contact and stainless body keep the interface repeatable.
