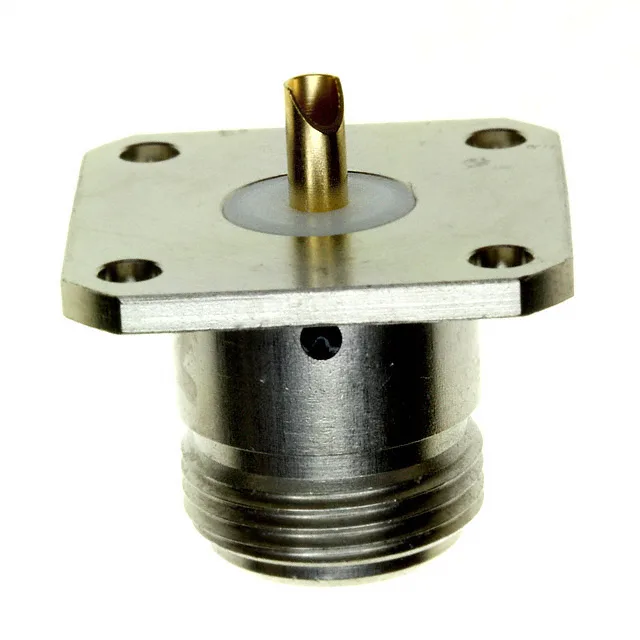

1057284-1 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE Connectivity 1057284-1 N-Type Receptacle, 50 Ohm, 11 GHz

MPN1057284-1
Obsolete

TE Connectivity N-type receptacle, female socket, panel mount with flange, 50 Ohm, 11 GHz, 1000 V, solder cup termination, gold-plated beryllium copper centre contact, PTFE dielectric, nickel-plated stainless steel body, Bulk.

$14.4700Ref. price · indicative, final on quote
1057284-1 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

1057284-1 Technical Specifications
ParameterValue
Mounting typePanel Mount
Connector typeReceptacle, Female Socket
Fastening typeThreaded
Voltage rating1000 V
Frequency - max11 GHz
Mounting featureFlange
Operating temperature-65°C ~ 125°C
Body materialStainless Steel
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBeryllium Copper
PackageBulk
Impedance50 Ohms
Body finishNickel
Mating cycles500
Number of ports1
Shield terminationSolder
Contact terminationSolder Cup
Center contact platingGold

Product details

N-Type Panel Receptacle, 50 Ohm, 11 GHz

The 1057284-1: The nickel-plated stainless steel body and flange mounting suit outdoor antenna, base station, and industrial RF enclosures where a weatherproof threaded mate is required.

Mates with any standard N-type male plug (male pin) with a threaded coupling nut. The flange mount requires a panel cutout and four mounting holes — no PCB footprint. Termination is via solder cup for both the centre conductor and the shield braid; prepare the cable end, tin the conductors, and solder into the cups.

Frequently asked questions

What are the specifications of 1057284-1?

The 1057284-1 is an N-type panel-mount receptacle, female socket, 50 Ohm impedance, rated to 11 GHz, 1000 V, with a PTFE dielectric, gold-plated beryllium copper centre contact, nickel-plated stainless steel body, and solder cup termination.
