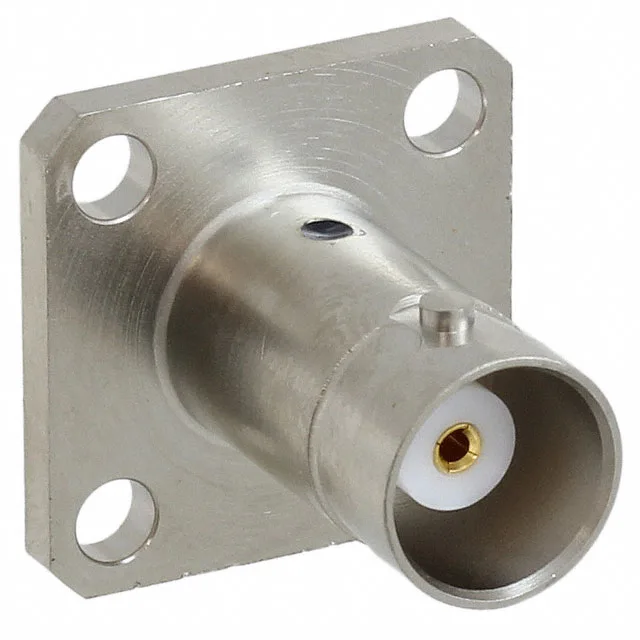

1058016-1 TE BNC Jack, 50 Ohm, 4 GHz, Panel Mount, Obsolete

MPN1058016-1
Obsolete

TE Connectivity BNC jack, female socket, 50 Ohms, 4 GHz, panel mount with flange, solder shield and contact termination, gold-plated beryllium copper centre contact, PTFE dielectric, 500 mating cycles.

$9.9700Ref. price · indicative, final on quote
1058016-1 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

1058016-1 Technical Specifications
ParameterValue
Mounting typePanel Mount
Connector typeJack, Female Socket
Fastening typeBayonet Lock
Voltage rating500 V
Frequency - max4 GHz
Mounting featureFlange
Operating temperature-65°C ~ 165°C
Body materialBrass
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBeryllium Copper
PackageBulk
FeaturesExtended Insulation
Impedance50 Ohms
Body finishNickel
Mating cycles500
Number of ports1
Shield terminationSolder
Contact terminationSolder
Center contact platingGold

Product details

BNC Panel Jack, 50 Ohm, 4 GHz — Obsolete

The 1058016-1: Mounting is via a flange to a panel or bulkhead, with the shield terminated by solder and the centre contact also solder-terminated — a solder-pot or solder-cup design rather than a crimp termination.

The centre contact is a female socket accepting the male pin of the mating plug. Both the shield and centre contact are solder-terminated; the shield termination is a solder cup or solder tab on the flange side, and the centre contact is a solder cup for the signal wire. No crimp tooling is required.
