TE Connectivity 1058117-1 BNC to SMA Adapter, 50 Ohm, 4 GHz

MPN1058117-1
Obsolete

TE Connectivity 1058117-1 BNC Jack to SMA Jack between-series adapter, Straight, Panel Mount Bulkhead, 50 Ohm, 4 GHz, Gold center contact, Bulk pack includes connector, lockwasher, nut.

$6.4300Ref. price · indicative, final on quote
1058117-1 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

1058117-1 Technical Specifications
ParameterValue
Adapter typeJack to Jack
MountingPanel Mount
Adapter seriesBNC to SMA
Fastening typeBayonet Lock, Threaded
Conversion typeBetween Series
Frequency - max4 GHz
Mounting featureBulkhead
Operating temperature-65°C~125°C
Body materialBrass; Stainless Steel
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBeryllium Copper
StyleStraight
PackageBulk
Includes3 pcs - 1 Connector, 1 Lockwasher, 1 Nut
Impedance50Ohm
Body finishNickel; Passivated
Center genderFemale to Female
Center contact platingGold
Convert to (Adapter end)SMA Jack, Female Socket
Convert from (Adapter end)BNC Jack, Female Socket

Product details

The TE Connectivity 1058117-1 is a between-series RF adapter that converts a BNC jack to an SMA jack in a single straight body. It is a panel-mount bulkhead adapter — the BNC side uses a bayonet lock, the SMA side uses threaded coupling — so it lets you transition between two common RF interface standards without a separate adapter cable.

No direct replacement is listed, so any requirement for this specific adapter must be filled through surplus or broker channels.

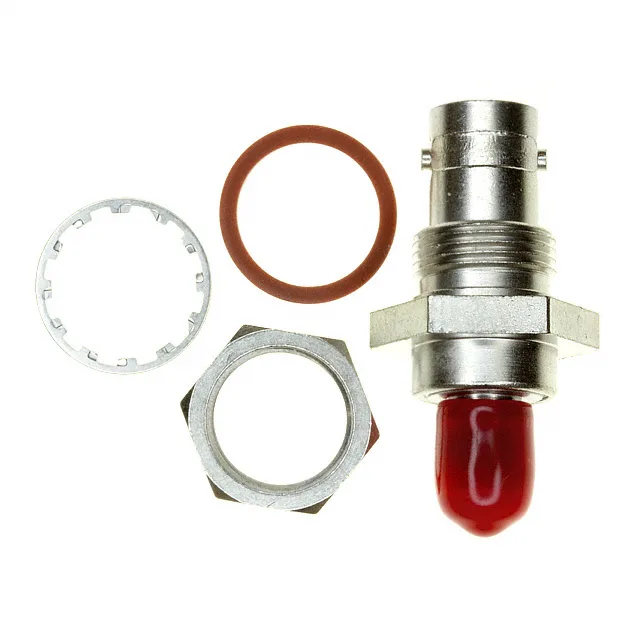

The bulk pack includes the connector body, a lockwasher, and a mounting nut.

Frequently asked questions

Is the 1058117-1 compatible with SMA and BNC connectors?

Yes, it is a between-series adapter with a BNC jack (female) on one end and an SMA jack (female) on the other. The BNC side uses a bayonet lock, the SMA side uses threaded coupling.

Is the 1058117-1 a 50 Ohm adapter?

Yes, the impedance is rated at 50 Ohm, which is the standard for most RF test and communications systems. The maximum frequency is 4 GHz.
