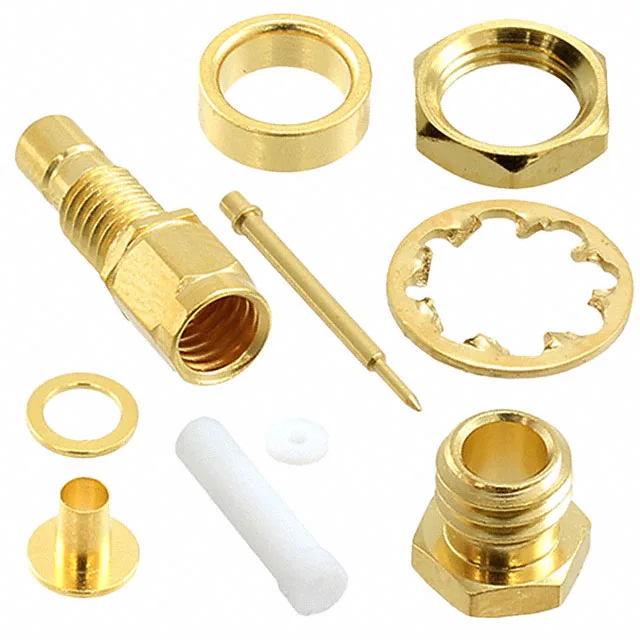

1060329-1 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE Connectivity 1060329-1 SMB Jack, 50 Ohm, 4 GHz, Obsolete

MPN1060329-1
Obsolete

TE Connectivity SMB jack, male pin, 50 Ohm, 4 GHz, 335 V, bulkhead front-side nut mount, snap-on, solder termination, gold body, includes hardware kit.

$2.1000Ref. price · indicative, final on quote
1060329-1 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

1060329-1 Technical Specifications
ParameterValue
Mounting typePanel Mount
Connector typeJack, Male Pin
Fastening typeSnap-On
Voltage rating335 V
Frequency - max4 GHz
Mounting featureBulkhead - Front Side Nut
Cable groupRG-174, 188, 316
Operating temperature-65°C ~ 165°C
Body materialBrass
Housing colorGold
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBeryllium Copper
PackageBulk
Includes10 pcs - 1 Connector, 1 Clamp, 1 Contact, 1 Ferrule, 2 Insulators, 1 Lockwasher, 1 Nut, 1 Ring, 1 Washer
Impedance50 Ohms
Body finishGold
Mating cycles500
Insertion loss0.3dB
Number of ports1
Shield terminationClamp
Contact terminationSolder
Center contact platingGold

Product details

SMB Jack, 50 Ohm, 4 GHz — Kit Includes All Hardware

The 1060329-1: It is a bulkhead-mount connector secured from the front side with a nut, using a snap-on mating interface. The kit ships as 10 pieces: one connector body, one clamp, one contact, one ferrule, two insulators, one lockwasher, one nut, one ring, and one washer — everything needed for a single cable termination.

This connector is specified for cable groups RG-174 and RG-316 — common 50 Ohm coax types. The dielectric is PTFE, which maintains stable impedance over the full temperature range.

Buyers should verify the cable group and mounting configuration match the application before ordering.

Frequently asked questions

Does 1060329-1 come with all mounting hardware?

Yes, the kit includes 10 pieces: one connector, one clamp, one contact, one ferrule, two insulators, one lockwasher, one nut, one ring, and one washer — everything needed for a single bulkhead termination.
