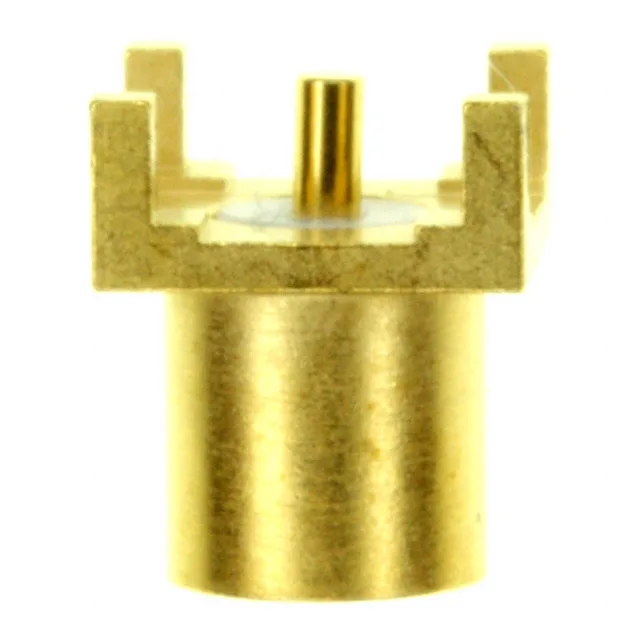

1060995-1 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE Connectivity 1060995-1 MCX Receptacle, 50 Ohm, 6 GHz

MPN1060995-1
Obsolete

TE Connectivity MCX receptacle, female socket, 50 Ohm, 6 GHz, through-hole solder, gold body, snap-on, 1 port, bulk.

$7.3600Ref. price · indicative, final on quote
1060995-1 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

1060995-1 Technical Specifications
ParameterValue
Mounting typeThrough Hole
Connector typeReceptacle, Female Socket
Fastening typeSnap-On
Voltage rating335 V
Frequency - max6 GHz
Operating temperature-65°C ~ 165°C
Body materialBrass
Housing colorGold
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBeryllium Copper
PackageBulk
Impedance50 Ohms
Body finishGold
Mating cycles500
Insertion loss0.1dB
Number of ports1
Shield terminationSolder
Contact terminationSolder
Center contact platingGold

Product details

MCX Receptacle, 50 Ohm — 6 GHz RF Interface

Gold-plated brass body and a gold-plated beryllium copper centre contact, with PTFE dielectric, keep the impedance stable through the interface.

Rated insertion loss of 0.1 dB at 6 GHz means the connector contributes minimal signal attenuation across the full bandwidth — the limiting factor in the RF chain will be the cable or the PCB launch, not this interface.

The voltage rating is the peak working voltage for the interface, not a continuous DC bus rating; in RF applications the signal voltage is well below this ceiling.

No official replacement part number is recorded in the lifecycle entry. No form-fit-function substitute is named in the official record; any cross-reference would require a pin-to-pin and interface check against the MCX standard.

Frequently asked questions

Where can I buy 1060995-1 and what is the price?

The 1060995-1 is sourced to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time — no stock-holding or fixed price is published for this obsolete part.

Is 1060995-1 cross compatible with SMA connectors?

No — the 1060995-1 is an MCX connector, which uses a different interface diameter and snap-on fastening compared to the threaded SMA interface. They are not mechanically or electrically compatible without an adapter.
