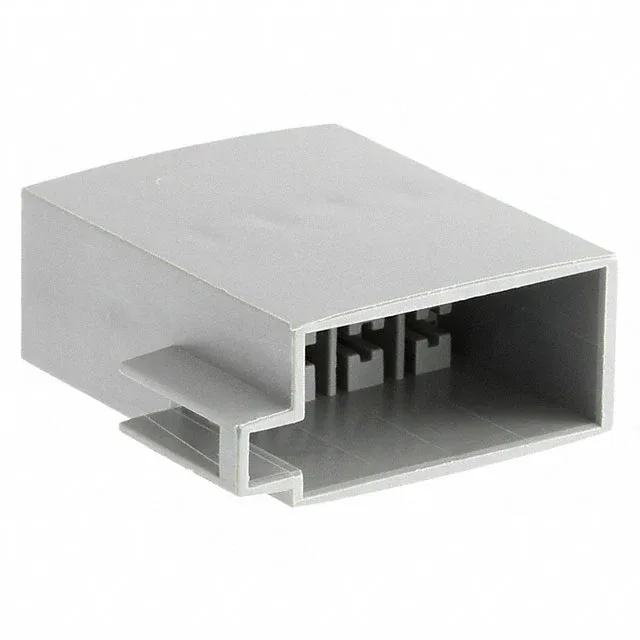

8-Position Dual-Row Plug Housing for Junior Timer Harnesses
Contacts Are Sold Separately — Plan Your BOM Accordingly
The housing accepts tab-type crimp terminals (sold separately), which must be ordered as a distinct BOM line. For a complete mated connector pair, you will also need the matching Junior Timer receptacle housing and the corresponding female crimp contacts. The crimp termination method allows field-serviceable wire attachment without soldering, but the terminal part number must be confirmed against the wire gauge you are running.
How the 8-Position Housing Compares to Nearby Siblings
Within the Junior Timer series, the 106455-3 (8 positions, gray) shares the same 5.00 mm pitch and dual-row layout as the 106455-4 (8 positions, brown). The color difference is the only spec-level distinction between these two — both are active, both use PBT, both are free-hanging plugs. The 969191-2 (8 positions, yellow) uses a 5.08 mm pitch and nylon 6/6 material, so it is not a pitch-for-pitch swap with the 106455-3.
