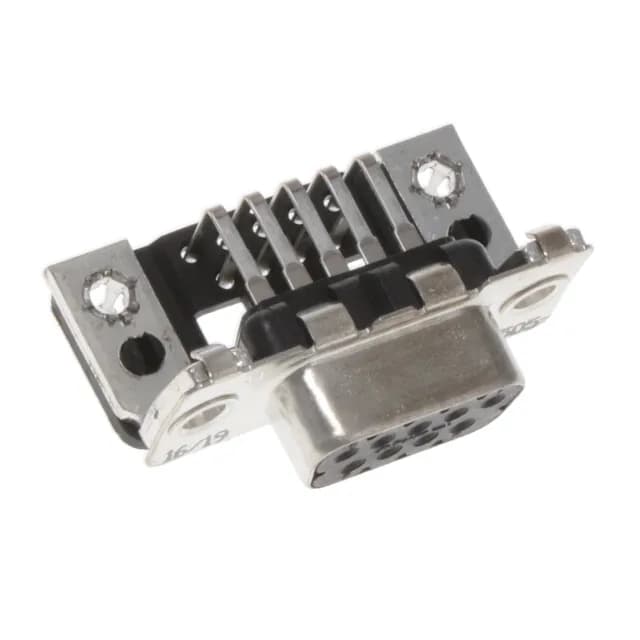

It mounts right-angle to the PCB and through the panel, using an unthreaded flange for the panel cutout.
Board Fit and Mounting
The board locks anchor the part during wave solder and resist the shear force from cable strain after assembly. Backset spacing of 0.406" (10.30mm) sets the distance from the PCB to the panel face; check this against your enclosure wall thickness before committing the footprint.
Mates with any standard DE-9 D-Sub plug (male) with the same shell size, 1 (DE, E). The unthreaded flange means the mating connector needs its own mounting hardware — typically a screw-lock or slide-lock pair. No crimp option on this part — it's a board-mount receptacle, not a cable-mount.
