TE Connectivity AMP Connectors 106507-2 — D-Sub Cable Assemblies

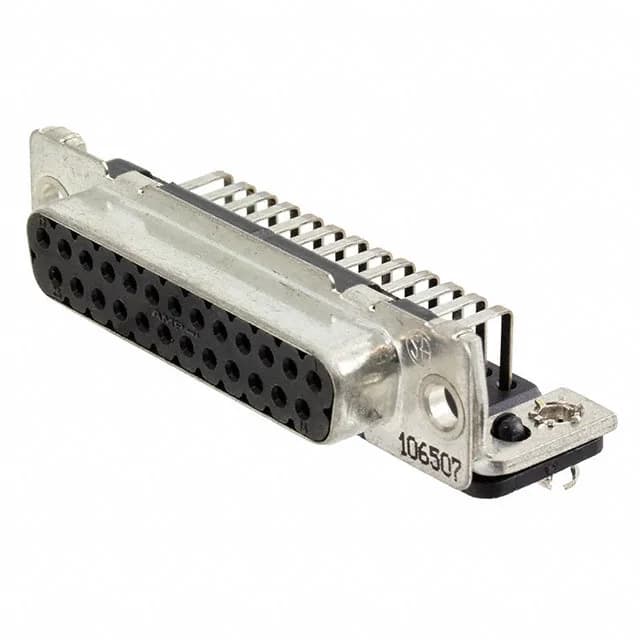

TE 106507-2 AMPLIMITE HD-20 D-Sub Receptacle, 25 Pos RA

MPN106507-2
Active

TE Connectivity AMPLIMITE HD-20 D-Sub receptacle, 25-position, 2-row, female sockets, right-angle solder termination, panel mount, gold 30.0µin contacts, 6A, 125V, board lock, UL94 V-0, black polyester shell.

$10.3200Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 106507-2 datasheet (PDF)
RoHSROHS3 Compliant
SeriesAMPLIMITE HD-20
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

106507-2 key specifications
ParameterValue
SeriesAMPLIMITE HD-20
TypeSignal
MountingPanel Mount, Through Hole, Right Angle
Connector typeReceptacle, Female Sockets
Voltage rating125V
Current rating6A
Shell size, connector layout3 (DB, B)
Operating temperature-55°C ~ 105°C
ColorBlack
Contact materialPhosphor Bronze
Dielectric materialPolyester, Glass Filled
Shell material, finishSteel, Tin Plated

All specifications

106507-2 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
PackageBulk
FeaturesBoard Lock
TerminationSolder
Contact finishGold
Flange featureHousing/Shell (Unthreaded)
Rows2
Backset spacing0.406\" (10.30mm)
Positions25
Contact finish thickness30.0µin (0.76µm)

Product details

DB-25 Right-Angle Receptacle with Board Lock

The TE Connectivity 106507-2 is a 25-position D-Sub receptacle from the AMPLIMITE HD-20 series, populated with female sockets in a standard DB-25 (B) shell layout. It terminates via right-angle solder tails for through-hole PCB mounting, with a panel-mount flange using unthreaded housing/shell holes.

Board Lock and Solder Termination

The 0.406" (10.30 mm) backset spacing positions the shell face relative to the board edge, matching standard DB-25 footprint requirements.

Ratings and Operating Range

Steel shell with tin plating provides EMI shielding and mates with standard DB-25 backshells.

Frequently asked questions

Where can I buy TE 106507-2?

Submit an RFQ for this active-production part.

What is the pinout of 106507-2?

The 106507-2 is a standard DB-25 receptacle with 25 female sockets arranged in two rows. The pinout follows the industry-standard D-Subminiature DB-25 assignment, with pin 1 in the upper-left corner when viewed from the mating face. Confirm the specific circuit-to-pin mapping against your harness drawing.
