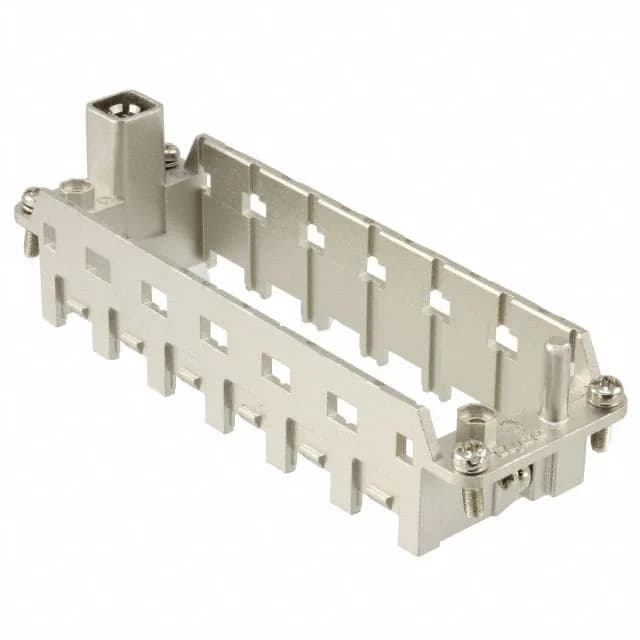

The TE Connectivity 1103250-1 is a Size 8 docking carrier shell frame from the HVS and HTS series of modular industrial connectors. It holds up to 6 modules — the same frame accepts either HVS or HTS inserts — and ships as a kit with the frame body plus 5 mounting screws. The frame is cast in zinc, giving it the rigidity to support the full module stack in a panel cutout. This is the mechanical backbone of the connector assembly; the modules (sold separately) carry the actual contacts.
Obsolete — What Crosses to It
A form-fit-function cross to a current-production Size 8 docking frame must match the 6-module capacity, the zinc construction, and the HVS/HTS module interface.
What the Size 8 and 6-Module Capacity Mean for Your Panel Cutout
Size 8 defines the panel opening and the overall frame envelope for this TE modular system. The 6-module capacity means the frame accepts up to six HVS or HTS inserts in a single shell — useful when you need a mix of power, signal, and pneumatic modules in one connector assembly. The zinc frame provides the structural tie; the five included screws secure the modules inside the frame.
