TE Connectivity AMP Connectors 120943-6 — Specialty Circular

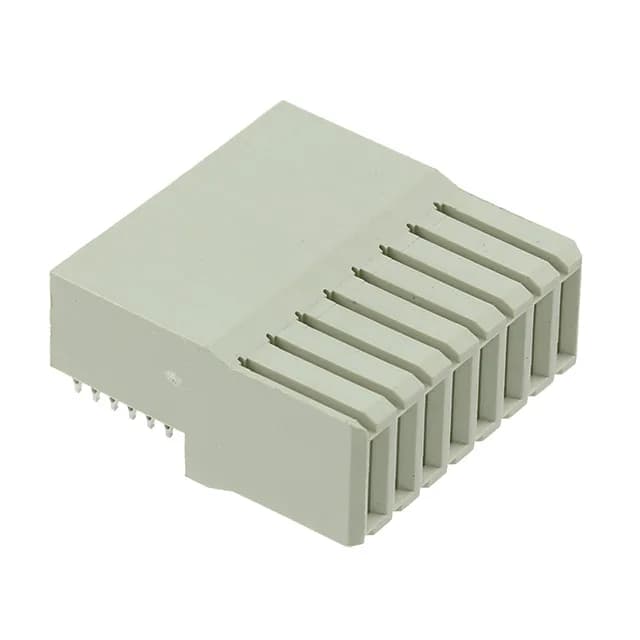

TE 120943-6 UPM Receptacle, 8 Pos, Press-Fit, Gold

MPN120943-6
Active

TE Connectivity UPM (Universal Power Modules) receptacle, female blade sockets, 8 positions, 1 row, press-fit termination, board edge through-hole right-angle mount, gold contact finish 50.0µin, UL94 V-0.

$14.5500Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesUPM (Universal Power Modules)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

120943-6 specifications
ParameterValue
SeriesUPM (Universal Power Modules)
MountingBoard Edge, Through Hole, Right Angle
Connector typeReceptacle, Female Blade Sockets
Connector usageBackplane
Operating temperature-55°C ~ 125°C
ColorGray
Material flammability ratingUL94 V-0
PackageBulk
TerminationPress-Fit
Contact finishGold
Rows1
Positions8
Contact layout, typical8 Power
Contact finish thickness50.0µin (1.27µm)

Product details

It accepts female blade sockets in a single row, with all 8 positions loaded. That's a key advantage for high-reliability backplane assemblies where rework or field replacement of individual connectors is needed, since press-fit pins can be pressed out and replaced without desoldering.

This receptacle mates with a UPM blade power header — the male half carries flat blade terminals that insert into the female blade sockets. The press-fit termination on the receptacle side means the backplane is populated without a wave solder step, which simplifies the assembly process for large backplanes with many power connectors. The single-row, 8-position layout with all contacts loaded means every position is active — no dummy or unloaded positions to track.

Frequently asked questions

What is the 120943-6 used for?

The 120943-6 is a backplane power receptacle — it distributes DC or AC power from a backplane to a plug-in card or power supply module. The press-fit termination and right-angle board-edge mounting are specific to backplane chassis designs where solderless assembly and perpendicular card insertion are required.

What is the closest substitute for 120943-6?

The same-series peer 2-1437357-0 is the closest functional equivalent — it shares the UPM series and blade power design, but is packaged in Spool rather than Bulk and is rated for 28 A per contact (a rating not confirmed for the 120943-6). For a direct drop-in, confirm the packaging format and current requirement with the BOM before substituting.
