Tab width and board fit
The 1217056-1: The 0.250" tab width mates with standard female quick-disconnect receptacles of the same width; the 0.032" thickness matches the common heavy-duty tab profile.

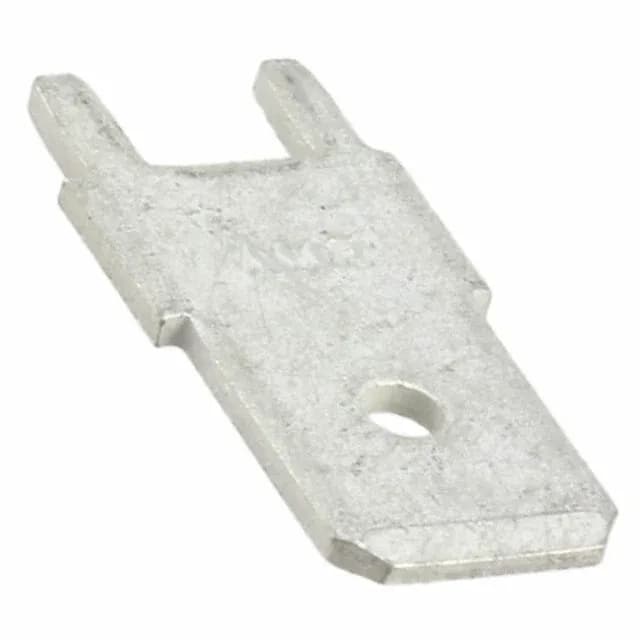

TE Connectivity Faston 1217056-1 Tab, 0.250" Male
MPN1217056-1
Active
TE Connectivity Faston tab, order code 1217056-1, male, 0.250" (6.35mm) width, 0.032" (0.81mm) tab thickness, tin-plated brass, through-hole, solder termination, bulk.
$0.1600Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesFaston
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Faston |
| Mounting | Through Hole |
| Terminal type | Standard |
| Tab width | 0.250\" (6.35mm) |
| Contact material | Brass |
| Gender | Male |
| Package | Bulk |
| Insulation | Non-Insulated |
| Tab length | 0.312\" (7.92mm) |
| Termination | Solder |
| Tab thickness | 0.032\" (0.81mm) |
| Contact finish | Tin |
| Length - overall | 0.622\" (15.80mm) |
