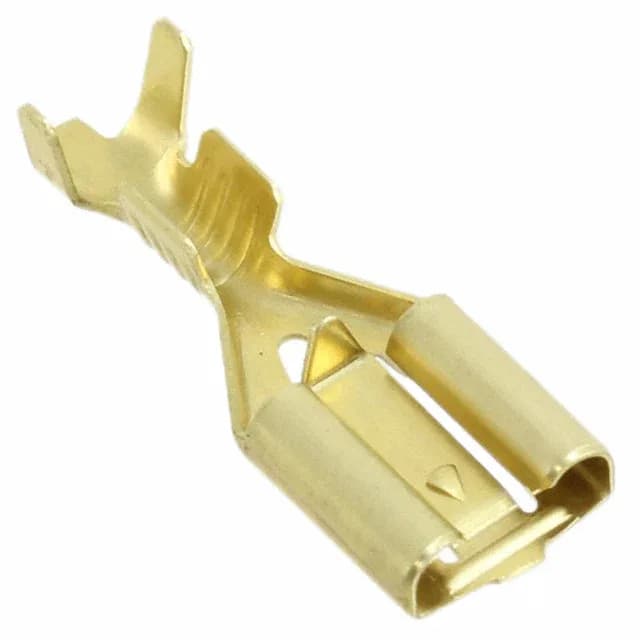

Quick-disconnect receptacle, 0.250" tab
The 1217094-1: The brass contact is non-insulated, crimp-terminated, and mounts free-hanging — a standard terminal for power distribution and control circuits.
1217094-1 TE Connectivity Mark III QC Receptacle, 14-18 AWG
MPN1217094-1
Active
TE Connectivity AMP Mark III quick-disconnect receptacle, order code 1217094-1, female, 0.250" (6.35mm) tab width, 14-18 AWG, brass contact, non-insulated, crimp termination, free hanging.
$0.2300Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMark III
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Mark III |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Standard |
| Wire gauge | 14-18 AWG |
| Tab width | 0.250\" (6.35mm) |
| Contact material | Brass |
| Gender | Female |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Insulation | Non-Insulated |
| Tab length | 0.293\" (7.44mm) |
| Termination | Crimp |
| Tab thickness | 0.032\" (0.81mm) |
| Length - overall | 0.771\" (19.58mm) |
| Insulation diameter | 0.090\" ~ 0.155\" (2.29mm ~ 3.94mm) |
Product details
Frequently asked questions
What compliance documentation does TE provide for 1217094-1?
The 1217094-1 is RoHS3 compliant. Additional compliance documentation is available upon request.
