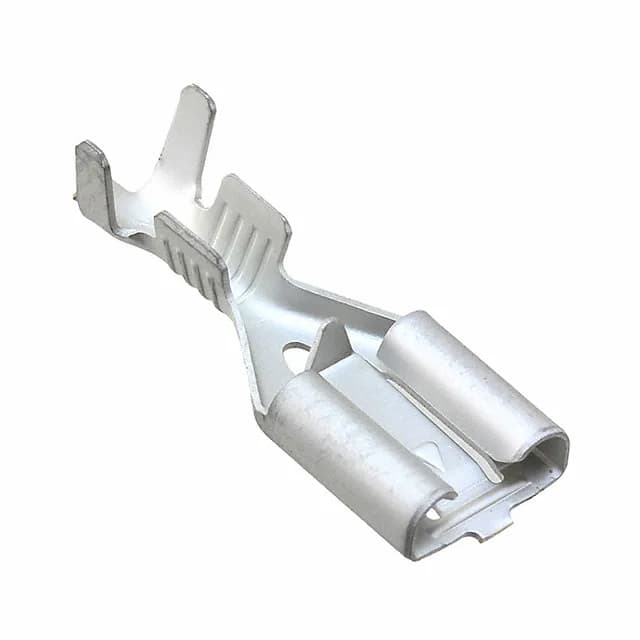

TE Connectivity AMP Connectors Mark III quick-disconnect receptacle, order code 1217094-2, female, 0.250" (6.35mm) tab width, 14-18 AWG, tin-plated brass, crimp termination, non-insulated, free hanging.
| Parameter | Value |
|---|---|
| Series | Mark III |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Standard |
| Wire gauge | 14-18 AWG |
| Tab width | 0.250\" (6.35mm) |
| Contact material | Brass |
| Gender | Female |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Insulation | Non-Insulated |
| Tab length | 0.293\" (7.44mm) |
| Termination | Crimp |
| Tab thickness | 0.032\" (0.81mm) |
| Contact finish | Tin |
| Length - overall | 0.771\" (19.58mm) |
| Insulation diameter | 0.090\" ~ 0.155\" (2.29mm ~ 3.94mm) |
The 1217094-2 is a female quick-disconnect receptacle in TE's Mark III series, accepting 0.250" (6.35mm) male tabs and 14-18 AWG wire. Tin-plated brass contact with crimp termination, non-insulated for free-hanging inline use.
Tab width is 0.250" (6.35mm) and tab thickness is 0.032" (0.81mm).
Accepts 14-18 AWG wire with an insulation diameter of 0.090" to 0.155" (2.29mm to 3.94mm).
