TE Connectivity AMP Connectors 1217095-1 — Quick-Disconnect Terminals

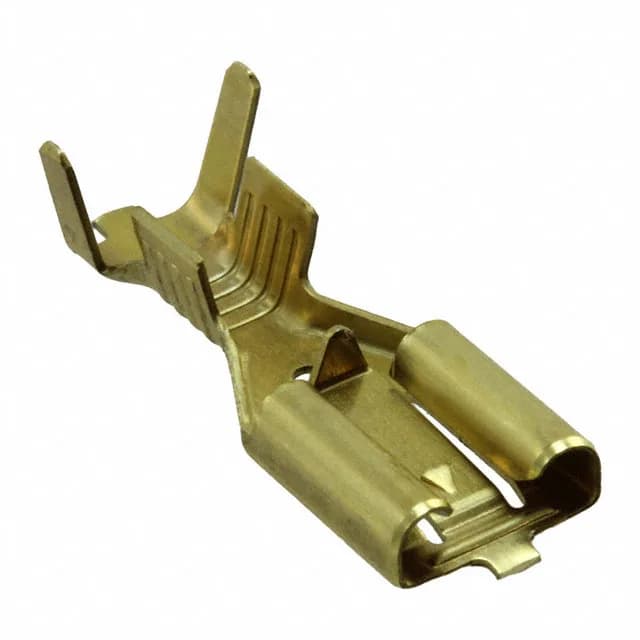

TE 1217095-1 Quick-Disconnect Terminal, 0.250" Tab

MPN1217095-1
Active

TE Connectivity AMP Mark III quick-disconnect terminal, order code 1217095-1, female, 0.250" (6.35mm) tab width, 0.032" (0.81mm) tab thickness, 12-16 AWG, non-insulated, crimp termination, free hanging, brass contact.

$0.2300Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesMark III
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1217095-1 specifications
ParameterValue
SeriesMark III
MountingFree Hanging (In-Line)
Terminal typeStandard
Wire gauge12-16 AWG
Tab width0.250\" (6.35mm)
Contact materialBrass
GenderFemale
PackageTape & Reel (TR) Cut Tape (CT)
InsulationNon-Insulated
Tab length0.293\" (7.44mm)
TerminationCrimp
Tab thickness0.032\" (0.81mm)
Length - overall0.771\" (19.58mm)
Insulation diameter0.120\" ~ 0.170\" (3.05mm ~ 4.32mm)

Product details

0.250" tab, 12-16 AWG female quick-disconnect

The 1217095-1 is a non-insulated female quick-disconnect terminal from TE Connectivity's Mark III series, accepting 12-16 AWG wire with a 0.250" (6.35mm) tab width and 0.032" (0.81mm) tab thickness. Crimp termination and a brass contact suit general-purpose power and signal circuits in free-hanging in-line applications.

The 1217095-1 carries an Active product status and is RoHS Compliant per TE Connectivity's declaration.

Same-tab-width peers in the catalog

The 1217095-1's 0.250" tab width and 0.032" tab thickness match the 1-1627194-4 (Utilux series, 15-18 AWG) and the 1-1659250-0 (Utilux series, 17-20 AWG); the 1377175-8 (Fastin-Faston, PIDG series, 14-16 AWG) uses a 0.312" tab width and 0.030" tab thickness.

Frequently asked questions

What is the gender of the 1217095-1 terminal?

The 1217095-1 is a female quick-disconnect terminal.

Will the 1217095-1 fit a panel specified for the 1-1627194-4?

Both terminals share a 0.250" tab width and 0.032" tab thickness, so the 1217095-1 will mechanically mate with the same male tab. The 1-1627194-4 accepts 15-18 AWG wire; the 1217095-1 accepts 12-16 AWG, so the wire gauge range differs.

What compliance documentation is available for the 1217095-1?

TE Connectivity AMP Connectors declares the 1217095-1 RoHS Compliant. No UL or IEC rating is listed in the available specifications.
