TE Connectivity AMP Connectors 1217107-1 — Quick-Disconnect Terminals

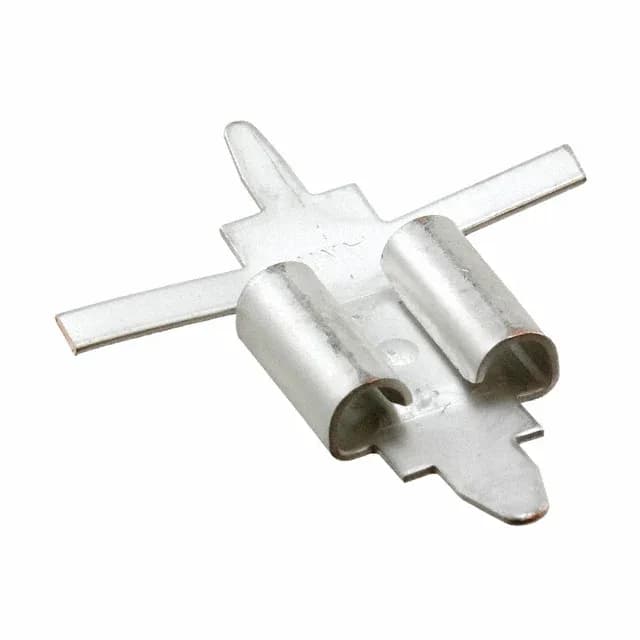

1217107-1 TE Faston Female QC Receptacle 0.250" Tab

MPN1217107-1
Active

TE Connectivity AMP Connectors Faston quick-disconnect receptacle, order code 1217107-1, female, 0.250" (6.35mm) tab width, 0.020" (0.51mm) tab thickness, non-insulated, tin-plated phosphor bronze, through-hole solder termination, horizontal terminal type.

$0.3900Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesFaston
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1217107-1 specifications
ParameterValue
SeriesFaston
MountingThrough Hole
Terminal typeHorizontal
Tab width0.250\" (6.35mm)
Contact materialPhosphor Bronze
GenderFemale
PackageTape & Reel (TR) Cut Tape (CT)
InsulationNon-Insulated
Tab length0.250\" (6.35mm)
TerminationSolder
Tab thickness0.020\" (0.51mm)
Contact finishTin

Product details

Faston 0.250" female receptacle

The 1217107-1 is TE Connectivity's Faston series female quick-disconnect receptacle for 0.250" (6.35mm) tabs, non-insulated, with a horizontal solder termination through the board. Contact is tin-plated phosphor bronze rated at 0.020" (0.51mm) tab thickness — the solder tail holds the tab in plane with the board surface.

Tab fit and termination

The 0.250" tab width and 0.020" thickness are standard for 0.250" series quick-disconnects — the solder termination fixes the receptacle to the board, unlike the crimp-style 1-1659250-0 or 1-1627194-4 which mount free-hanging in-line.

Frequently asked questions

What is the tab width and thickness for 1217107-1?

Tab width is 0.250" (6.35mm) and tab thickness is 0.020" (0.51mm).

Does 1217107-1 drop in for a panel specified around 1-1659250-0?

No — 1-1659250-0 is a crimp-style, free-hanging female receptacle with a 0.248" tab width and 0.031" thickness, while 1217107-1 is a through-hole solder terminal. The termination method and mounting differ; rewiring is required.
