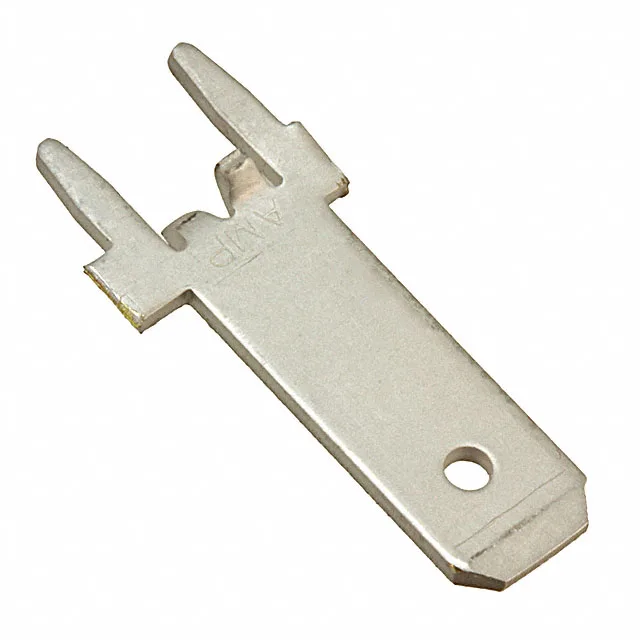

TE Connectivity AMP Faston male tab, order code 1217124-1, 0.187" (4.75mm) tab width, 0.032" (0.81mm) tab thickness, tin-plated brass contact, non-insulated, through-hole solder termination.
| Parameter | Value |
|---|---|
| Series | Faston |
| Mounting | Through Hole |
| Terminal type | Standard |
| Tab width | 0.187\" (4.75mm) |
| Contact material | Brass |
| Gender | Male |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Insulation | Non-Insulated |
| Tab length | 0.470\" (11.94mm) |
| Termination | Solder |
| Tab thickness | 0.032\" (0.81mm) |
| Contact finish | Tin |
| Length - overall | 0.710\" (18.03mm) |
The 1217124-1 is a male tab from the TE Faston series, a standard 0.187" (4.75mm) quick-disconnect terminal with a 0.032" (0.81mm) tab thickness. The tin-plated brass contact is non-insulated and terminates via through-hole solder, suiting board-mount applications where a reliable, low-resistance connection is needed.
This tab is available in Tape & Reel (TR) or Cut Tape (CT) packaging, with the base product number 1217124 covering the series footprint.
The 1217124-1 is orderable through distribution channels. Request a quote against your BOM quantity for current pricing and availability.
The 1217124-1 is RoHS3 compliant. No UL or IEC ratings are listed in the available specifications.
