0.187" tab, 14-18 AWG crimp receptacle

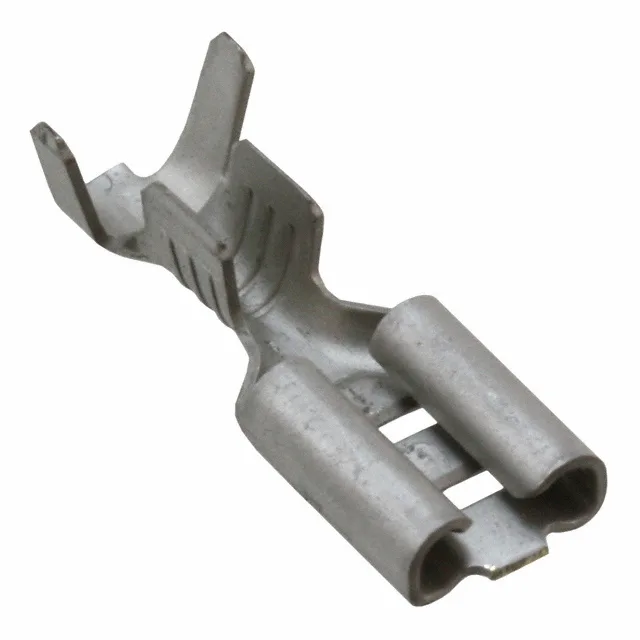

The 1217149-1 is a female quick-disconnect receptacle in TE's Faston series, accepting 0.187" (4.75mm) tab width and 0.020" (0.51mm) tab thickness mates. Wire range is 14-18 AWG with a crimp termination; the non-insulated brass contact carries tin plating for corrosion resistance in moderate environments.
Crimp termination, free-hanging fit
Termination is a standard crimp barrel accepting insulation diameters from 0.110" to 0.160" (2.79mm to 4.06mm). Mounts free-hanging in-line — no panel hole or housing required. The 0.248" (6.30mm) tab length provides the mating engagement depth for standard Faston male tabs of the same width and thickness.
