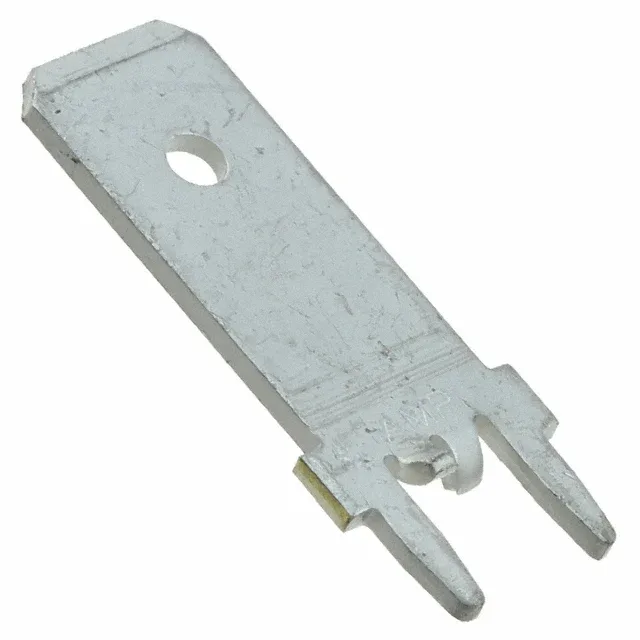

TE Connectivity AMP Connectors Faston quick-disconnect terminal, order code 1217167-1, male tab, 0.250" (6.35mm) tab width, 0.032" (0.81mm) tab thickness, tin-plated brass, solder termination, through-hole mount, bulk package.
| Parameter | Value |
|---|---|
| Series | Faston |
| Mounting | Through Hole |
| Terminal type | Standard |
| Tab width | 0.250\" (6.35mm) |
| Contact material | Brass |
| Gender | Male |
| Package | Bulk |
| Insulation | Non-Insulated |
| Tab length | 0.540\" (13.72mm) |
| Termination | Solder |
| Tab thickness | 0.032\" (0.81mm) |
| Contact finish | Tin |
| Length - overall | 0.780\" (19.81mm) |
The 1217167-1 is a male quick-disconnect tab from the TE Faston series, with a 0.250" (6.35mm) tab width and 0.032" (0.81mm) tab thickness. Termination is solder through-hole, the contact is tin-plated brass, and the part ships in bulk.
TE Connectivity AMP Connectors lists the 1217167-1 as ROHS3 Compliant.
