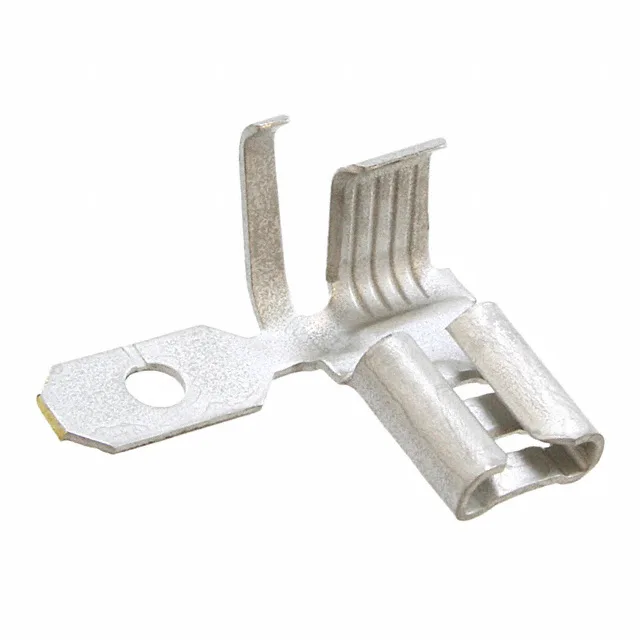

TE Connectivity Faston receptacle, order code 1217244-2, female, 0.187" (4.75mm) tab width, 14-18 AWG, tin-plated brass, crimp termination, free hanging right angle, non-insulated.
| Parameter | Value |
|---|---|
| Series | Faston |
| Mounting | Free Hanging (In-Line), Right Angle |
| Terminal type | Angled - 90°, Flag |
| Wire gauge | 14-18 AWG |
| Tab width | 0.187\" (4.75mm) |
| Contact material | Brass |
| Gender | Female |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Insulation | Non-Insulated |
| Tab length | 0.250\" (6.35mm) |
| Termination | Crimp |
| Tab thickness | 0.032\" (0.81mm) |
| Contact finish | Tin |
| Insulation diameter | 0.075\" ~ 0.155\" (1.91mm ~ 3.94mm) |
The 1217244-2 is a female Faston quick-disconnect receptacle from TE Connectivity AMP Connectors, accepting 14-18 AWG wire with a 0.187" (4.75mm) tab width. The 90° flag orientation routes the wire parallel to the tab axis, keeping the crimp joint clear of the mating blade in tight spaces — tin-plated brass contacts handle the current path without an insulation sleeve.
The receptacle accepts 0.187" (4.75mm) wide tabs with 0.032" (0.81mm) thickness.
Wire gauge range is 14-18 AWG; the insulation diameter must fall between 0.075" (1.91mm) and 0.155" (3.94mm) for the crimp barrel to seal properly.
