Mag-Mate terminal for 31-33 AWG magnet wire

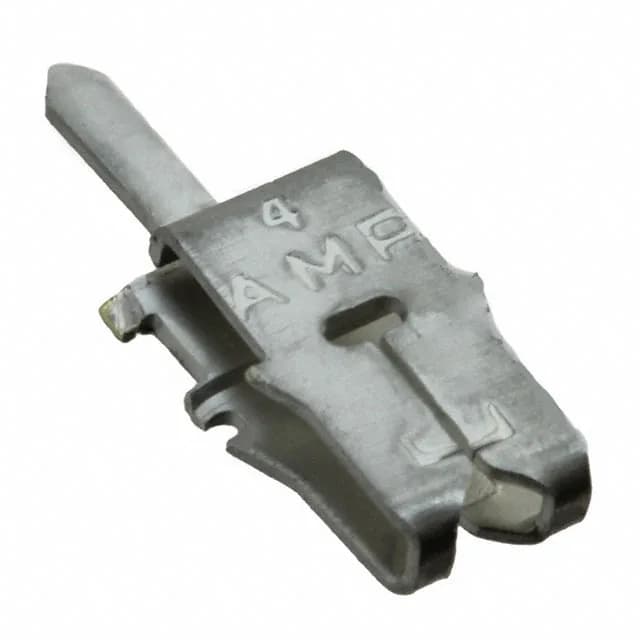

The 1217302-1 is a Size 6, Style 300 magnetic wire terminal in TE's Mag-Mate series, designed for 31-33 AWG wire with a Box IDC termination that pierces the insulation on insertion. Termination is via a PCB post — the terminal is pressed into the board and the magnet wire is pushed into the IDC slot, no stripping required.
Position within the Mag-Mate series
The 1217302-1 (Size 6) handles finer wire than the 1394476-1 (Size 2, 18-20 AWG) in the same Mag-Mate family — the two share the Box IDC termination method but serve different wire ranges and do not interchange.
