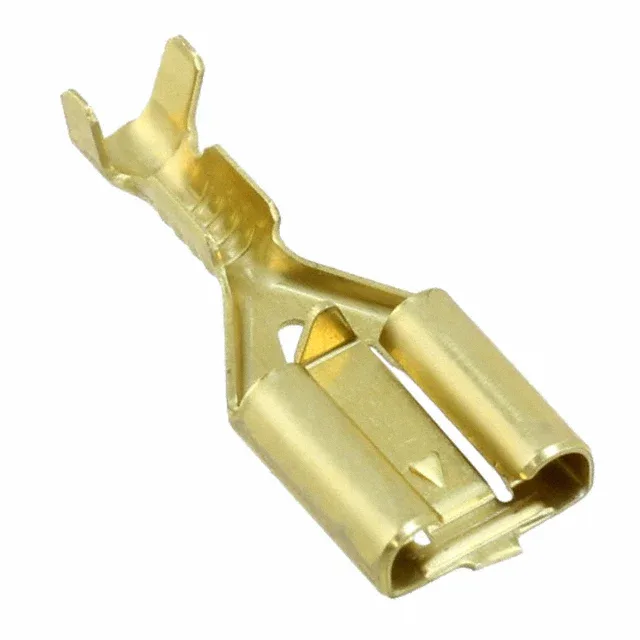

TE Connectivity AMP Mark III quick disconnect receptacle, order code 1217378-1, female, 0.250" (6.35mm) tab width, 18-22 AWG, brass contact, non-insulated, crimp termination, free hanging.
| Parameter | Value |
|---|---|
| Series | Mark III |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Standard |
| Wire gauge | 18-22 AWG |
| Tab width | 0.250\" (6.35mm) |
| Contact material | Brass |
| Gender | Female |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Insulation | Non-Insulated |
| Tab length | 0.293\" (7.44mm) |
| Termination | Crimp |
| Tab thickness | 0.032\" (0.81mm) |
| Length - overall | 0.771\" (19.58mm) |
| Insulation diameter | 0.060\" ~ 0.110\" (1.52mm ~ 2.79mm) |
The 1217378-1 is the female quick disconnect receptacle in TE's Mark III series, accepting 0.250" (6.35mm) tab width male blades. The brass contact is rated for 18-22 AWG wire with a crimp termination and free-hanging in-line mounting; the non-insulated design requires the mating tab thickness of 0.032" (0.81mm).
The 1217378-1 is available in Tape & Reel (TR) and Cut Tape (CT) packaging. Submit an RFQ for current pricing and lead time against your BOM quantity.
