TE Connectivity AMP Connectors 1217558-2 — Quick-Disconnect Terminals

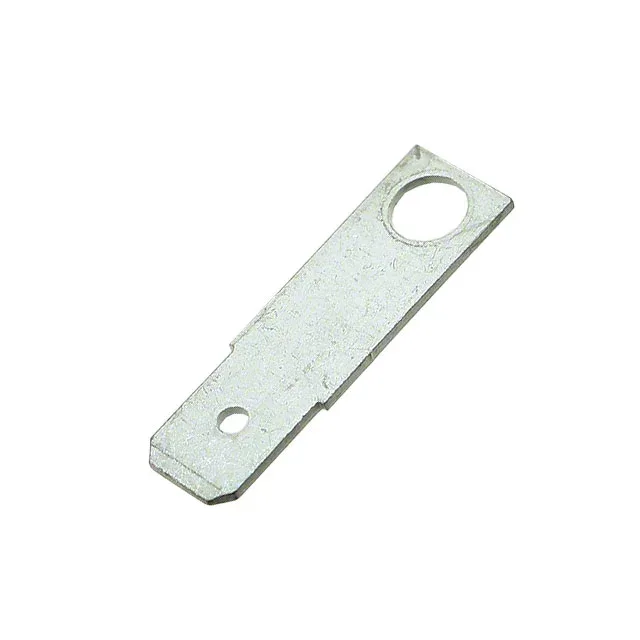

TE Faston 1217558-2 Male Quick-Disconnect Tab, 0.250"

MPN1217558-2
Active

TE Connectivity Faston male quick-connect tab, order code 1217558-2, 0.250" (6.35mm) width, 0.032" (0.81mm) tab thickness, tin-plated brass, board/chassis mount, screw/rivet/stud termination, non-insulated, bulk.

$0.3200Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1217558-2 datasheet (PDF)
RoHSROHS3 Compliant
SeriesFaston
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1217558-2 specifications
ParameterValue
SeriesFaston
MountingBoard, Chassis
Terminal typeStandard
Tab width0.250\" (6.35mm)
Contact materialBrass
GenderMale
PackageBulk
InsulationNon-Insulated
Tab length0.312\" (7.92mm)
TerminationScrew, Rivet, Stud
Tab thickness0.032\" (0.81mm)
Contact finishTin
Length - overall0.940\" (23.88mm)

Product details

Termination style and mounting

The 1217558-2 is a male quick-connect tab in TE's Faston series, terminated by screw, rivet, or stud for board or chassis mounting. Tab dimensions are 0.250" (6.35mm) width and 0.032" (0.81mm) thickness; the tin-plated brass contact carries the current.

Same-series selection: tab width

Within the Faston family, the 1217558-2's 0.250" tab sits between the 0.248" (6.30mm) width of the Utilux 1659250 and the 0.312" (7.92mm) width of the Fastin-Faston 1377175-8 — all three are tin-plated brass, non-insulated, and active.

Frequently asked questions

Will 1217558-2 drop into a panel specified around 1-1659250-0 without rewiring?

No. The 1217558-2 is a male tab (screw/rivet/stud termination) for board or chassis mounting; the 1-1659250-0 is a female crimp terminal for free-hanging wire. They are not mechanically interchangeable.
