TE Connectivity AMP Connectors 1217955-1 — Quick-Disconnect Terminals

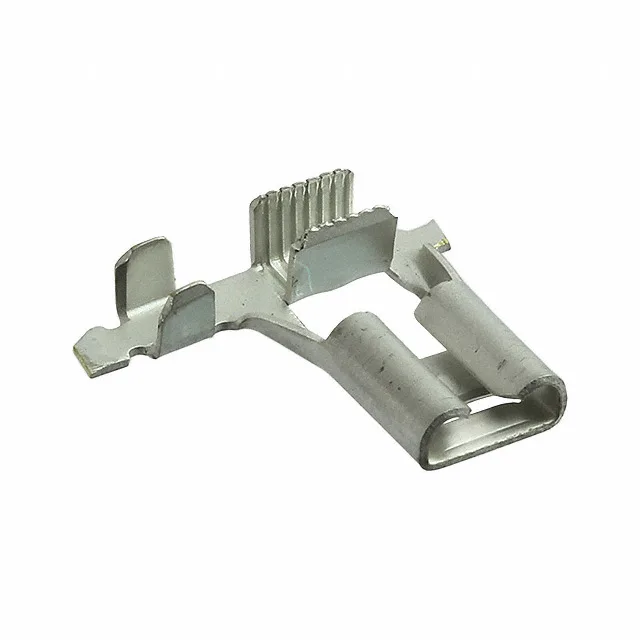

TE 1217955-1 Quick-Disconnect Terminal, 0.187" Tab

MPN1217955-1
Active

TE Connectivity AMP Connectors Amplivar, Faston quick-disconnect terminal, order code 1217955-1, female, 0.187" (4.75mm) tab width, 14-18 AWG, tin-plated brass, non-insulated, flag 90° angled, crimp termination, free hanging in-line.

$0.2000Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesAmplivar, Faston
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

1217955-1 specifications
ParameterValue
SeriesAmplivar, Faston
MountingFree Hanging (In-Line), Right Angle
Terminal typeAngled - 90°, Flag
Wire gauge14-18 AWG
Tab width0.187\" (4.75mm)
Contact materialBrass
GenderFemale
PackageTape & Reel (TR) Cut Tape (CT)
InsulationNon-Insulated
Tab length0.240\" (6.10mm)
TerminationCrimp
Tab thickness0.032\" (0.81mm)
Contact finishTin

Product details

Flag terminal for 0.187" tabs

The 1217955-1 is the female quick-disconnect terminal in TE's Amplivar and Faston series, accepting 14-18 AWG wire and mating to 0.187" (4.75mm) wide tabs. The 90° flag orientation routes the wire parallel to the tab plane, suiting tight spaces where a straight crimp would not fit. Tin-plated brass contact material resists corrosion in moderate environments.

Same-tab-width peers in the catalog

The 1217955-1 shares its 0.187" tab width with the Utilux-series terminal 1-1659250-0 (17-20 AWG, 0.031" tab thickness) and the 1-1627194-4 (15-18 AWG, 0.032" tab thickness). Tab thickness matches the 1-1627194-4 at 0.032" (0.81mm); the 1-1659250-0 is 0.031" (0.79mm). Wire gauge range and insulation support differ — match the terminal to the wire size and tab thickness of the mating tab.

Frequently asked questions

What is the closest functional second-source to 1217955-1?

The Utilux-series terminal 1-1659250-0 is a non-insulated female quick-disconnect with the same 0.187" tab width and tin-plated brass construction, but accepts 17-20 AWG wire and has a 0.031" tab thickness. Verify wire gauge and tab thickness compatibility before substituting.
