TE Connectivity AMP Connectors 1241634-3

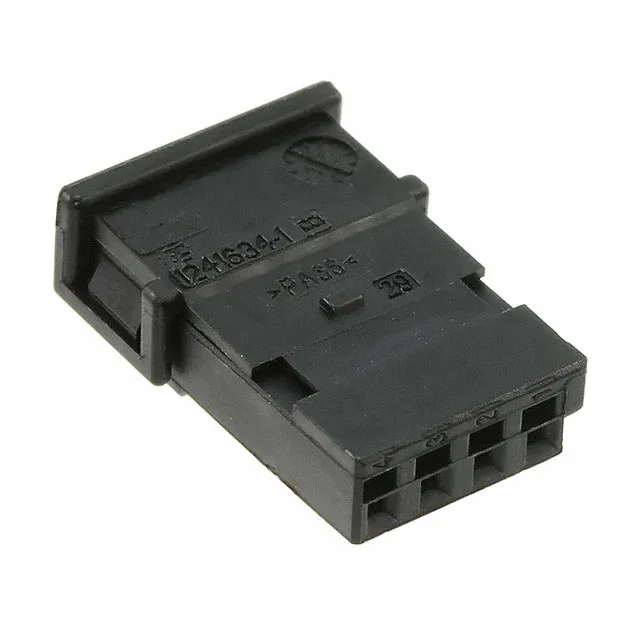

1241634-3 Micro Quadlok Receptacle Housing, 4-Pos, 2.54mm

MPN 1241634-3
Active

TE Connectivity Micro Quadlok receptacle housing, 1241634-3, 4 positions, 1 row, 2.54mm pitch, free hanging, crimp termination, black PA66, bulk.

$0.4000 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesMicro Quadlok
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1241634-3 specifications
ParameterValue
SeriesMicro Quadlok
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Operating temperature-40°C ~ 85°C
ColorBlack
Insulation materialPolyamide (PA66), Nylon 6/6
NoteContacts Not Included
Pitch0.100\" (2.54mm)
PackageBulk
Rows1
Contact terminationCrimp
Positions4

Product details

4-Position Housing — Order the Terminals Separately

The 2.54mm pitch matches standard 0.100-inch header pin spacing, making this a direct fit for a 4-pin Micro Quadlok header in a wire-to-board harness. The single most important thing to know before ordering: contacts are not included. The housing ships empty. Ordering just the housing and expecting a wired connector at the bench is the most common miss on this part.

Mating Half and Harness Fit

This receptacle mates with a 4-position Micro Quadlok header (male pin header) at the same 2.54mm pitch. The free-hanging design means it terminates a cable assembly, not a board — the header is the board-mounted half. Crimp termination means each wire is individually inserted and crimped into a socket terminal, then loaded into the housing. This is field-serviceable: a bad wire or terminal can be removed and replaced without scrapping the whole harness.

MPN
1241634-3
